Standard

Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot
Series Pitch
 Photo PDF Performance Category Description Cable entry hole Loading bar Diameter Wire Insert Diameter Maximum Cable O.D. Size Supported Maximum conductor W/insulation O.D. Size Conductor type Packaging Features Plug Housing Material Contact Blades Material Operation Temperature Storage temperature Compliance Related Accessories Related Crimping Tools 產品列表 產品編號搜尋 其他代工資訊

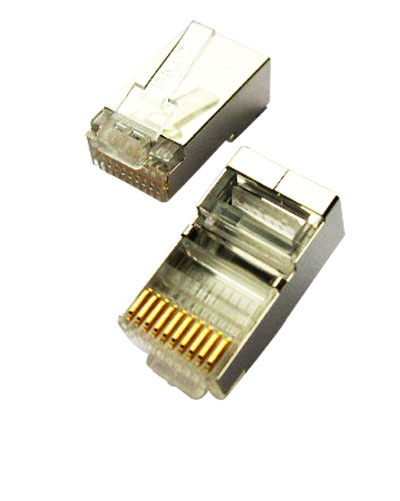

P10-001 10P10C-R STP RJ48 Modular Plug N/A 10P10C-R Shielded R N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-200AR
P10-001-3 10P10C-R STP-Hook RJ48 Modular Plug N/A 8P8C-R Shielded with hook R N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-200AR

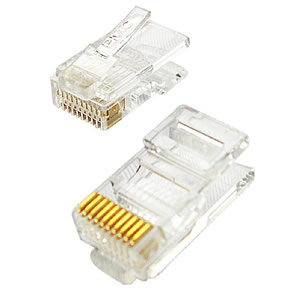

P10-002 10P10C-F 10P10C-F 24~26 AWG

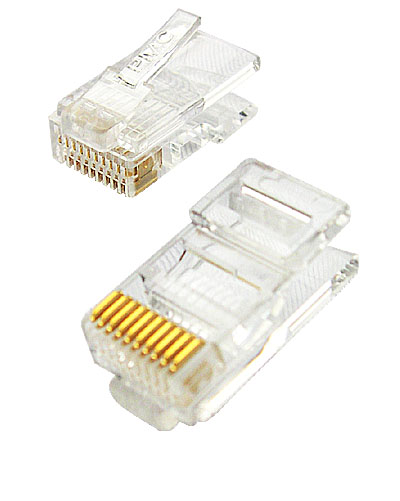

P10-003 10P10C-R RJ48 Modular Plug N/A 10P10C-R R N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-200AR
P10-003-1 10P4C-R (6.7.8.9 Pin) 10P4C-R (6.7.8.9) 24~26 AWG
P10-003-2 10P6C-R (3.4.5.6.7.8 Pin) 10P6C-R (3.4.5.6.7.8) 24~26 AWG

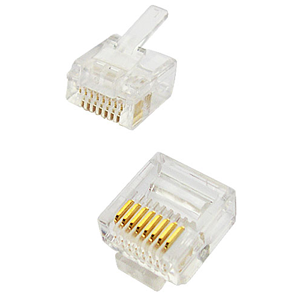

P10-003-3 10P10C-R Full Closed-Small Strain Relief Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
P10-003-4 10P5C-R (2.4.5.6.7 Pin)Full Pin-Half stopple 10P5C-R(2.4.5.6.7)打十片　 半塞 24~26 AWG
P10-003-6 10P5C-R (2.4.5.6.7 Pin)Full Pin-Half stopple 10P10C-R 三叉 24~26 AWG
P10-004 10P10C-R-L Shielded Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
P10-004 10P10C-R-L Shielded 10P10C-R-L 鐵 24~26 AWG
P10-010 10P10C F STP RJ48 Modular Plug N/A 10P10C-F Shielded F N/A 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-200AR
P10-012 10P10C-R STP-Half Shielded RJ48 Modular Plug N/A 10P10C-R Half Shielded R N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-200AR
