Cat.6

Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot
Series Pitch
 Photo PDF Description 2 Available wire gauge 產品列表 產品編號搜尋 其他代工資訊

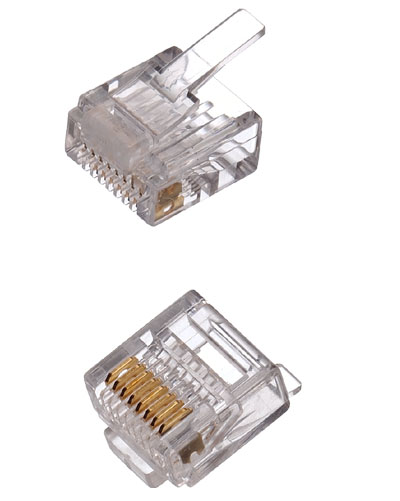

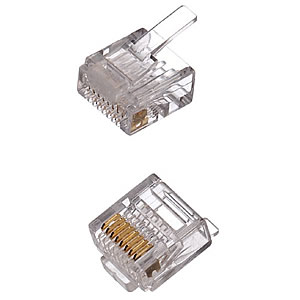

P8-S51 S-8P8C-R 2 Layers S-8P8C-R 雙排 24~26 AWG

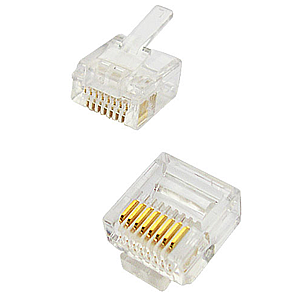

P8-S64-1 S-8P8C-R-L 2 Layers-1.13
(New Aperture)		 S-8P8C-R-L 雙排1.13新線孔 23 AWG

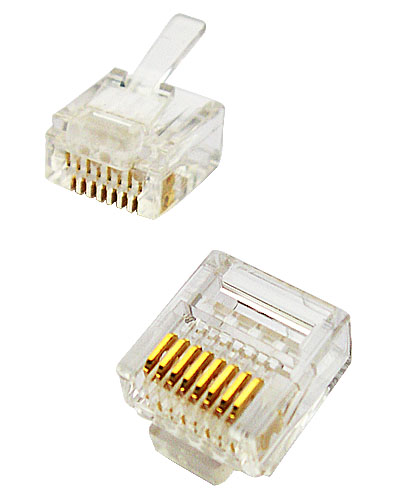

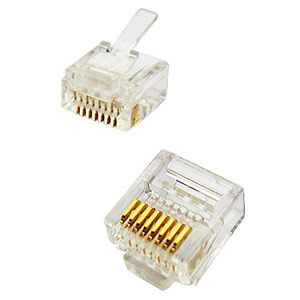

P8-S69 S-8P8C-F-L 2 Layers-Hollow
Strain Relief 		S-8P8C-F-L 雙排空線檔 24~26 AWG

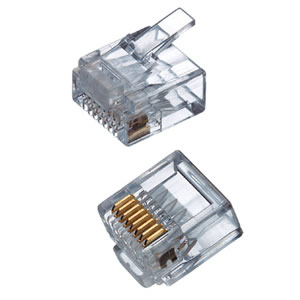

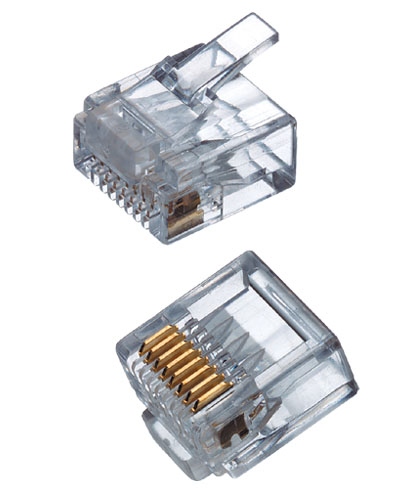

P8-S70 S-8P8C-R-H 2 Layers S-8P8C-R-H 雙排 24~26 AWG

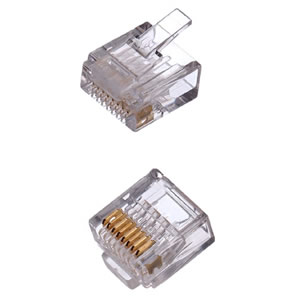

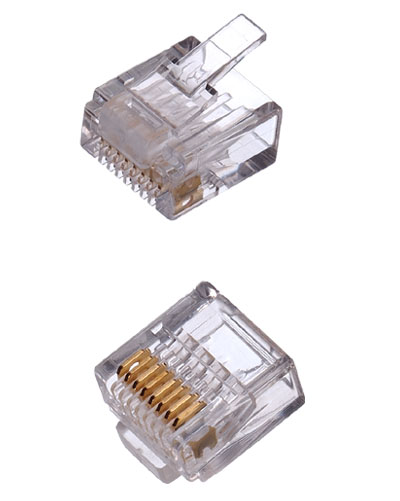

P8-S72 S-8P8C-F 2 Layers-No
Strain Relief		 S-8P8C-F 雙排 無線檔 24~26 AWG

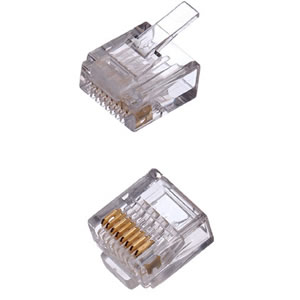

P8-S72-1 S-8P8C-F-L 2 Layers-No
Strain Relief 		S-8P8C-F-L雙排 無線檔 24~26 AWG

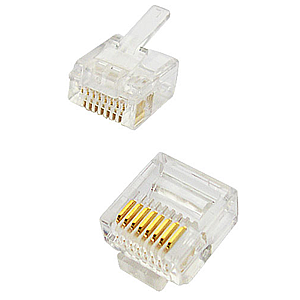

P8-S72-2 S-8P8C-F-L 2 Layers-No Strain
Relief(5.36 Long Pin)		 S-8P8C-F-L雙排 無線檔 5.36高 片 24~26 AWG

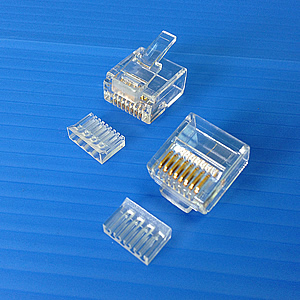

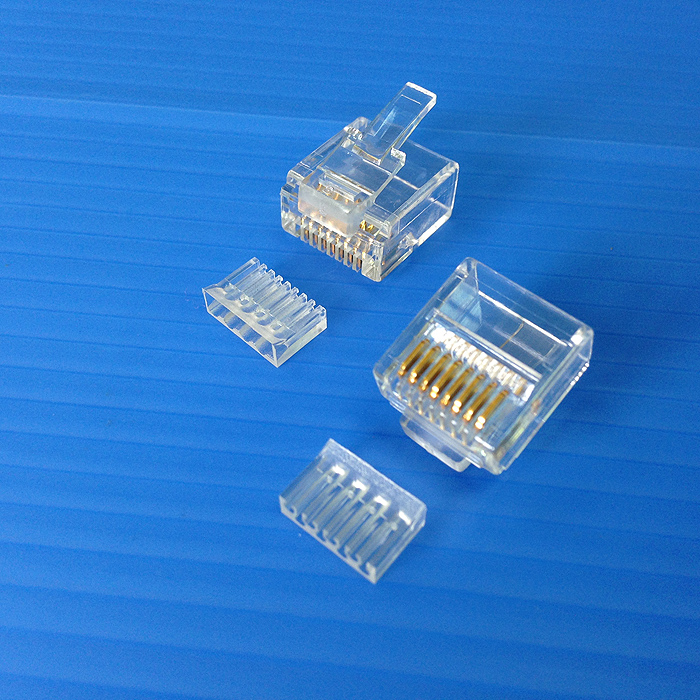

P8-S77 S-8P8C-F 2 Layers-W/Bevel
Insert		 S-8P8C-F 雙排斜度2.6 二件式 24~26 AWG

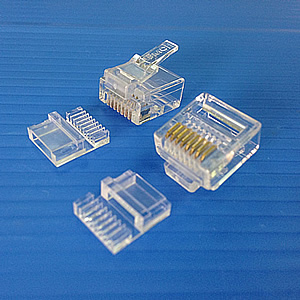

P8-S78-5 S8P8C-F 2 Pieces with Bevel insert-0.5mm S-8P8C-F 斜度二件式空線檔含0.5支架 34~36AWG

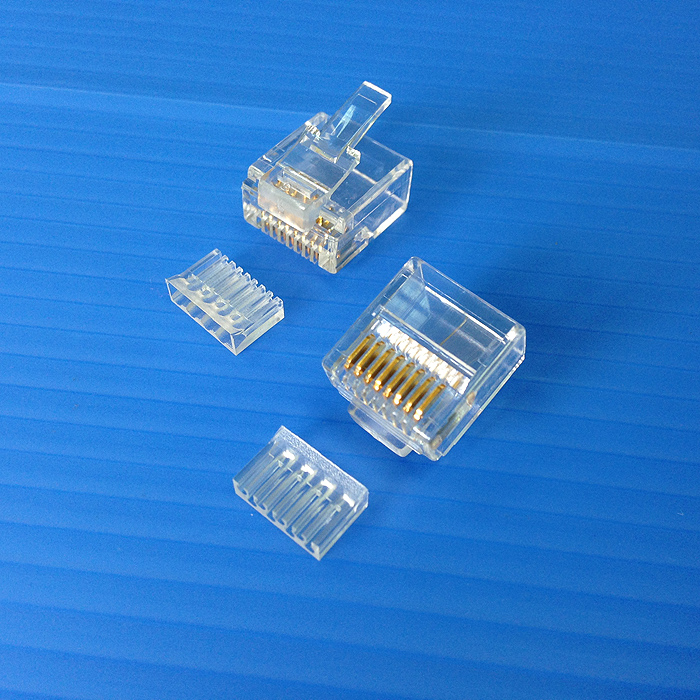

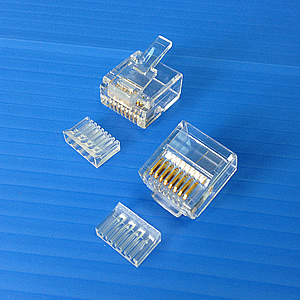

P8-S79 S-8P8C-F 2 Layers-W/Bevel Insert-No
Strain Relief 		S-8P8C-F雙排 斜度二件式2.6 無線檔 24~26 AWG

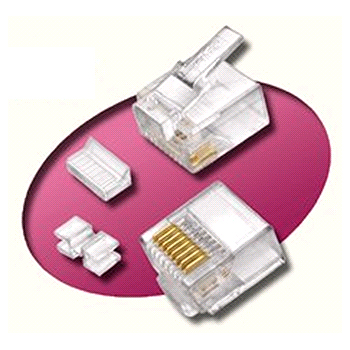

P8-S80-3 C6 S-8P8C-F UTP RJ45 Modular Plug Cat.6 S-8P8C-F with insert and divider, without strain relief F 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant PM-288R
P8-S80-4 S-8P8C-F W/Bevel 2 Insert-2-No
Strain Relief 		S-8P8C-F 斜度三件式 (2.85)無線檔支架-2 24~26 AWG

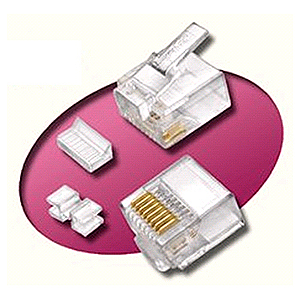

P8-S80-6 S-8P8C-F W/Bevel 2 Insert-2-Hollow
Strain Relief		 S-8P8C-F 斜度三件式 (3.50)支架空線檔-2 24~26 AWG
P8-S80-7 S-8P8C-F-L W/Bevel 2 Insert-2-No
Strain Relief		 S-8P8C-F-L 斜度三件式 (3.50)支架無線檔-2 24~26 AWG
P8-S86 C6 S-8P8C-F UTP Nylon RJ45 Modular Plug Cat.6 S-8P8C-F with insert, Nylon Material F 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag 94V2 rated Polyamide 66 Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-029 PM-288R
P8-S87 C6 S-8P8C-F UTP-0.6mm, Nylon RJ45 Modular Plug Cat.6 S-8P8C-F with fold insert 0.6mm, Nylon , without Strain Relief F 0.6mm 0.6mm For Flat Cable 0.6mm Solid | Stranded 1000pcs/bag 94V2 rated Polyamide 66 Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant PM-288R
P8-S58-3 C6 S-8P8C-F-L UTP-0.6mm RJ45 Modular Plug Cat.6 S-8P8C-F-L with insert 0.6mm, For 2 prong pin only F-L 0.6mm 0.6mm For Flat Cable 0.6mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant PM-288R
P8-S78 C6 S-8P8C-F UTP-0.6mm RJ45 Modular Plug Cat.6 S-8P8C-F with insert 0.6mm F N/A 0.6mm For Flat Cable 0.6mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant PM-288R
P8-S78-1 C6 S-8P8C-F UTP-0.4mm RJ45 Modular Plug Cat.6 S-8P8C-F with insert 0.4mm F N/A 0.4mm For Flat Cable 0.4mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant PM-288R

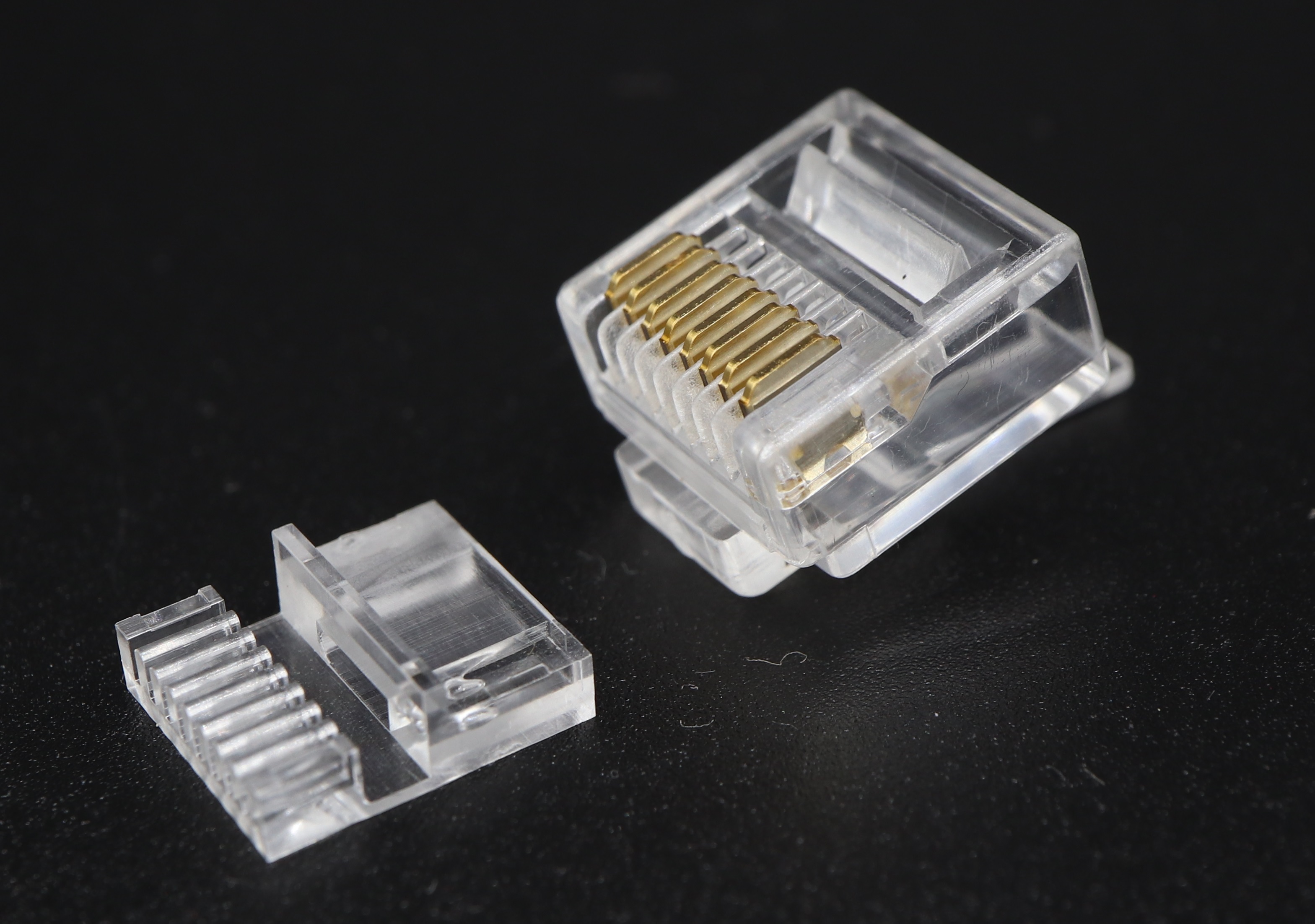

P8-S78-2 C6 S-8P8C-F-L UTP-0.4mm Long Latch RJ45 Modular Plug Cat. 6 S-8P8C-F-L with insert 0.4mm Long Latch F 0.4mm 0.4mm For Flat Cable 0.4mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant PM-288R
