路徑 : Product Overview > S-8P (Short body) > Cat.5e
Search by Pitch :

Cat.5e

Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot
Series Pitch
 Photo PDF 產品列表 產品編號搜尋 其他代工資訊
P8-S63-3 C5E S-8P8C-F Shielded Modular Plug
P8-S64 C5E S-8P8C R-L UTP RJ45 Modular Plug Cat.5E S-8P8C R-L 2 Layers R-L N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant PM-288R

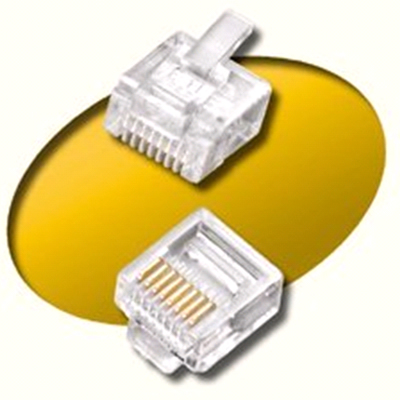

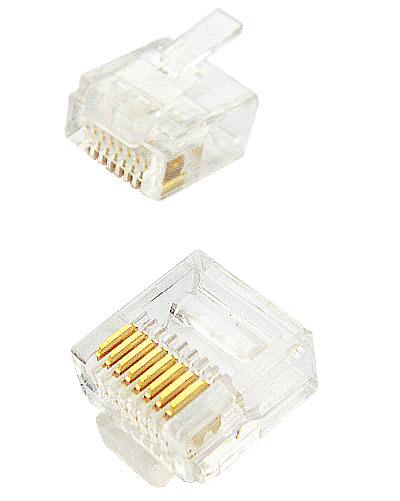

P8-S52 S-8P8C-F S-8P8C-F 24~26 AWG
P8-S52-1 C5E S-8P8C-F UTP RJ45 Modular Plug Cat.5E S-8P8C-F Small Strain Relief F N/A 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-030 PM-288R

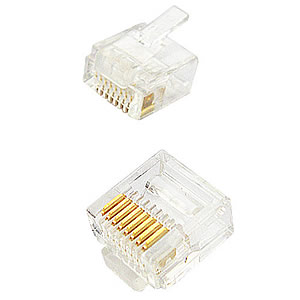

P8-S52-2 S-8P8C-F Little Strain
Relief-0.7 		S-8P8C-F 0.7線孔 小線檔 24~26 AWG

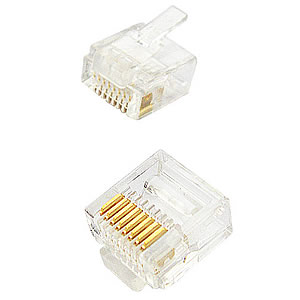

P8-S53-2 S-8P8C-R 0.9 S-8P8C-R 0.9線孔 24~26 AWG
P8-S53-4 C5E S-8P8C-R UTP-Small strain relief RJ45 Modular Plug Cat.5E S-8P8C-R Little Strain Relief R N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-031 PM-288R

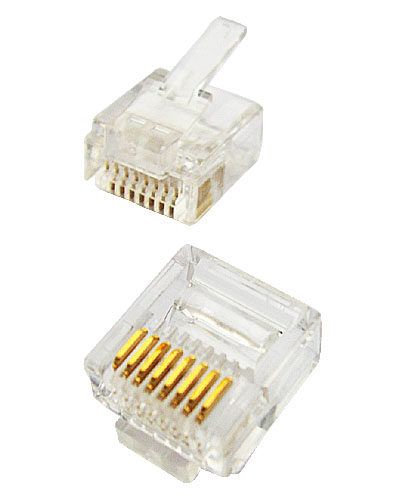

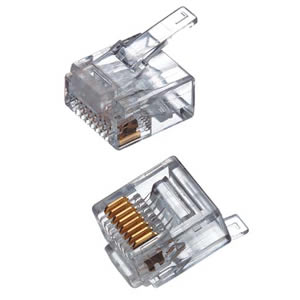

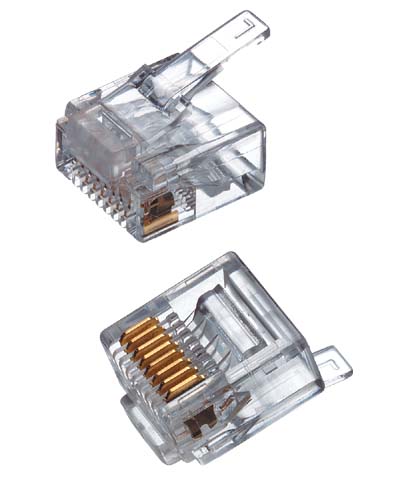

P8-S54-1 S-8P8C-F-L Little Strain
Relief 		S-8P8C-F-L小線檔 24~26 AWG

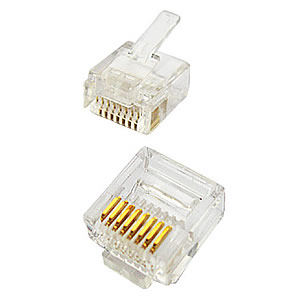

P8-S55 S-8P8C-R-L S-8P8C-R-L 24~26 AWG

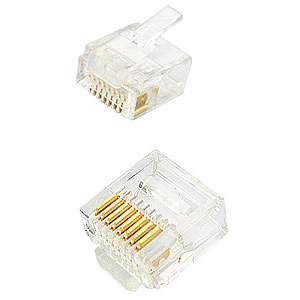

P8-S55-1 S-8P8C-R-L 1.05 S-8P8C-R-L 1.05 線孔 24 AWG

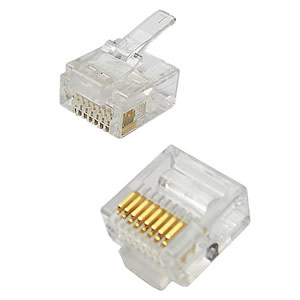

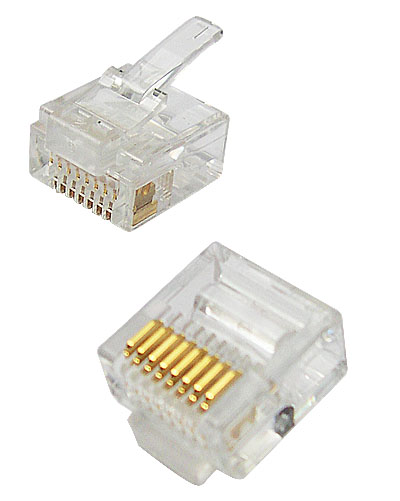

P8-S56 S-8P8C-R 0.8 S-8P8C-R-0.8 24~26 AWG
P8-S57 C5E S-8P8C R-L UTP-0.8mm RJ45 Modular Plug Cat.5E S-8P8C R-L with conductor hole 0.8mm R N/A 0.8mm For Round Cable 0.8mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-031R PM-288R

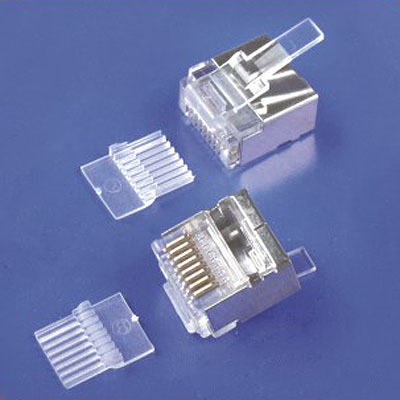

P8-S60 S-8P8C-F-L W/Insert-Shielded-0.6 S-8P8C-F-L-0.6線孔二件式 鐵 24~26 AWG

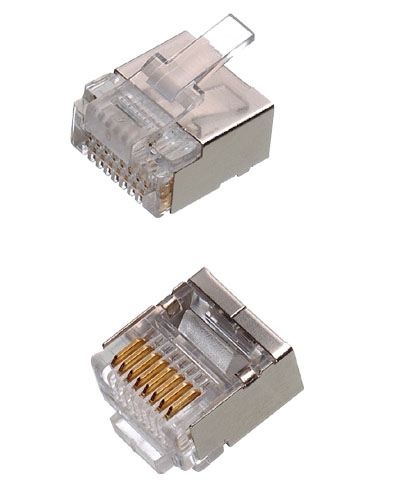

P8-S63 C5E S-8P8C-F Shielded RJ45 Modular Plug Cat.5E S-8P8C-F Shielded F N/A 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant PM-288R

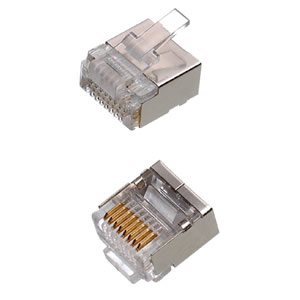

P8-S63-1 S8P8C-F Shielded-0.8 S8P8C-F 鐵 0.8線孔 24~26 AWG

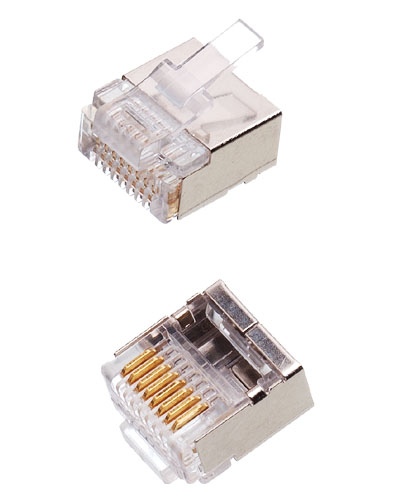

P8-S67 S-8P8C-F Hollow Strain
Relief -Shielded		 S-8P8C-F 空線檔 鐵 24~26 AWG

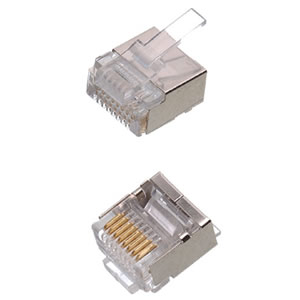

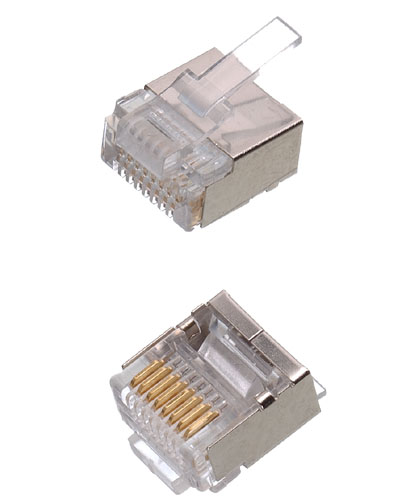

P8-S73 S-8P8C-F-L Shielded S-8P8C-F-L 鐵 24~26 AWG

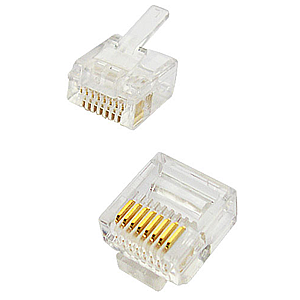

P8-S75 S-8P8C-F-L Hollow Strain
Relief-Shielded 		S-8P8C-F-L空線檔 鐵 24~26 AWG

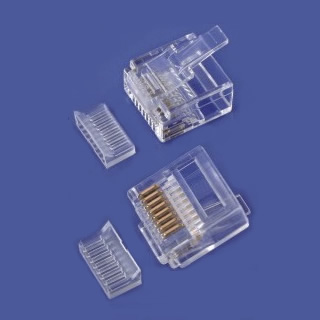

P8-S78-4 S-8P8C-F W/Bevel Insert-Small
Strain Relief		 S-8P8C-F 斜度二件式(小線檔)含2.85支架 24~26 AWG
P8-S80-8 S-8P8C-F W/Bevel Insert-No
Strain Relief 		S-8P8C-F 斜度(3.50)二件式 無線檔 24~26 AWG

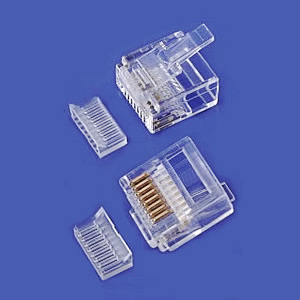

P8-S80-9 S-8P8C-F W/Bevel Insert 0.7-Hollow
Strain Relief 		S-8P8C-F 斜度(3.50)二件式 0.7線孔 空線檔 24~26 AWG
P8-S80-10 S-8P8C-F-LW/Bevel Insert 0.6-Hollow
Strain Relief 		S-8P8C-F -L斜度(3.50)二件式 0.6線孔 空線檔 30~32 AWG
