路徑 : Product Overview > 8P Plug > Cat.6A > Unshielded
Search by Pitch :

Unshielded

Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot
Series Pitch
 Photo PDF Performance Category Description Cable entry hole Loading bar Diameter Wire Insert Diameter Maximum conductor W/insulation O.D. Size Maximum insulation Dia. Conductor type Packaging Features Plug Housing Material Contact Blades Materia Operation Temperature Storage temperature Compliance Related Accessories Related Crimping Tools Features & Benefits 產品列表 產品編號搜尋 其他代工資訊

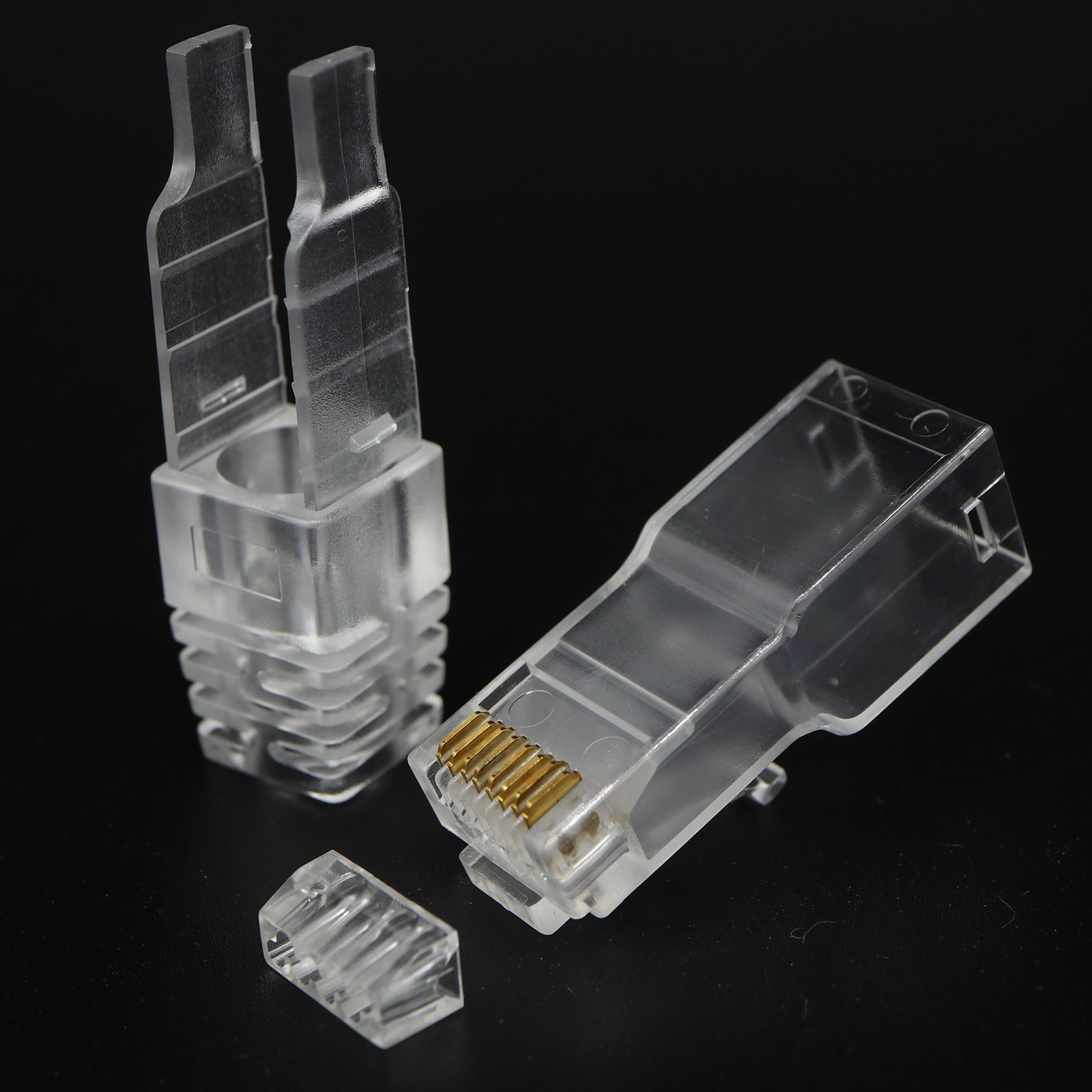

P8-054-1 C6A 8P8C-F 3 layers UTP RJ45 Modular Plug with Special Boot C6A CHANNEL 8P8C F 3 layers wire hole 1.2mm with insert 1.4mm F 1.4mm 1.2mm For Flat Cable 1.2mm Solid | Stranded 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-037 8.30 mm & 8.8mm PM-236Q1D-U For Cat.6A UTP Larger Cable

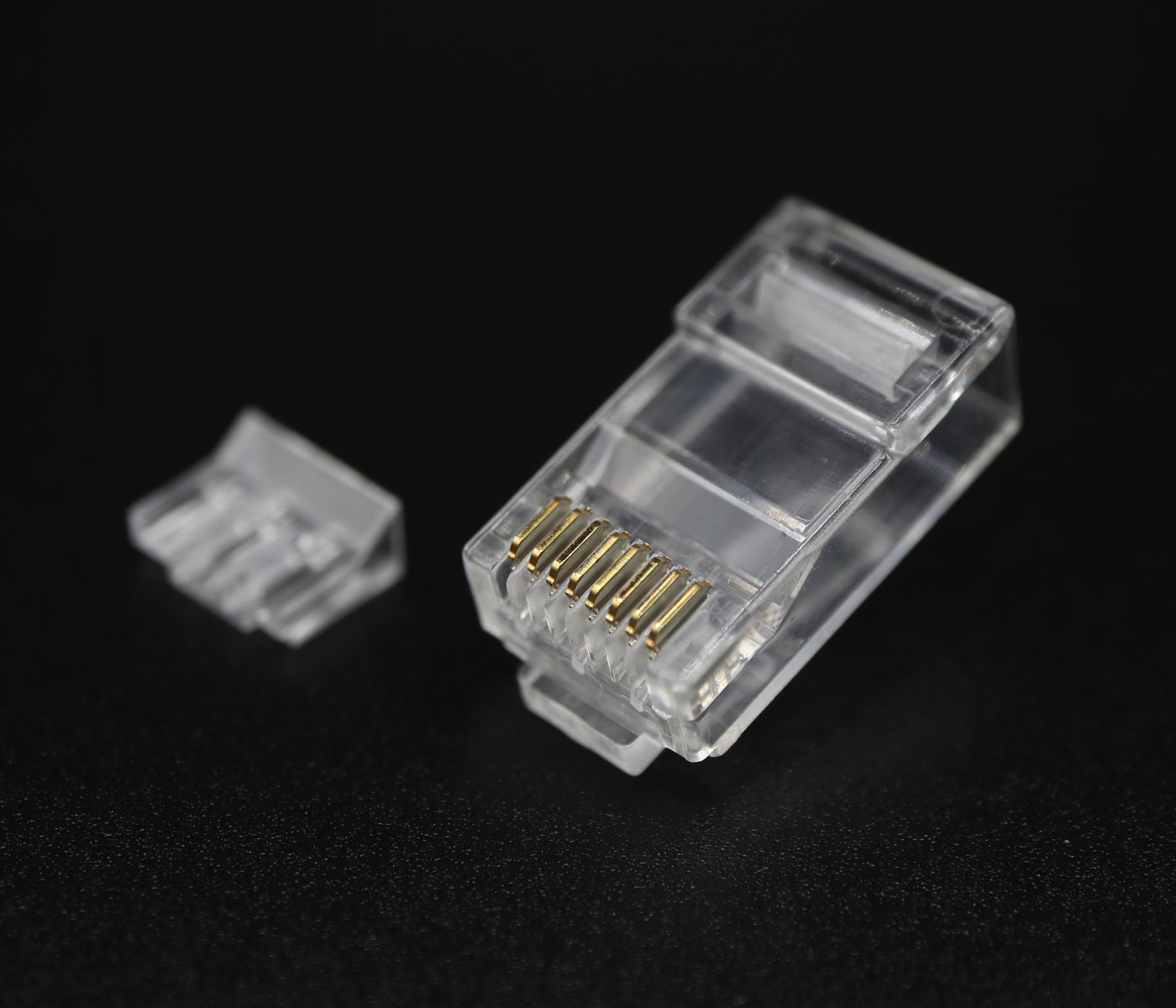

P8-063-27 C6A 8P8C-F UTP-0.6mm RJ45 Modular Plug C6A C6A 8P8C-F 2 layers wire hole 0.6mm with insert 0.7mm  F 0.7mm 0.6mm For Flat Cable 0.6mm

Solid | Stranded

 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC)

Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating

 - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R

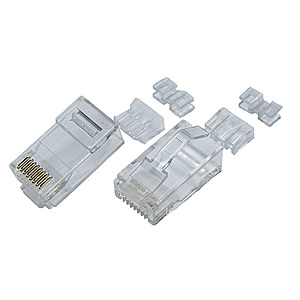

P8-027-3 8P8C-F 2 Layers, with load bar 0.6mm and divider Arc Latch 8P8C-F 雙排斜度2.5三件式-2 支架（0.6mm）3.6長片 弧形彈片 30~32 AWG

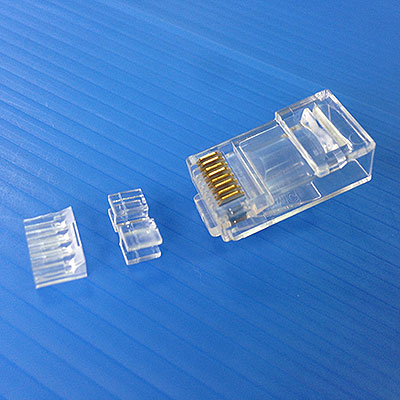

P8-039-20 C6A 8P8C-2R-V UTP-1.14mm RJ45 Modular Plug Cat.6A 8P8C-2R-V 2 layers with insert 1.14mm and divider 2R-V 1.14mm 1.14mm For Round Cable 1.14mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R

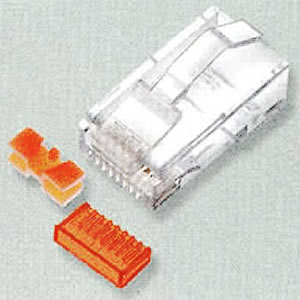

P8-052 8P8C-2R-V 2 Inserts Arc Latch 8P8C-2R-V斜度三件式弧形彈片含3.4支架-5 24~26 AWG

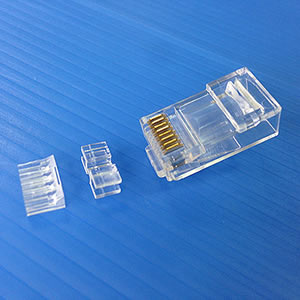

P8-052-1 8P8C-2R-V 2 Inserts 8P8C-2R-V斜度三件式含3.4支架-5 24~26 AWG
P8-063-1 C6A 8P8C-F UTP RJ45 Modlar Plug Cat.6A 8P8C-F 2 Layers with insert and divider, 3.6 long pin F 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-063-3 C6A 8P8C-F UTP-1.1 mm RJ45 Modular Plug Cat.6A 8P8C-F 2 Layes with insert 1.1mm and divider F 1.1mm 1.1mm For Flat Cable 1.1mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-063-8 Cat.6A 8P8C-F UTP-0.9mm RJ45 Modular Plug Cat.6A 8P8C-F 2 Layers with insert 0.9mm F 0.9mm 0.9mm For Flat Cable 0.9mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-063-9 Cat.6A 8P8C-F UTP-0.8mm RJ45 Modular Plug Cat.6A 8P8C-F 2 Layers with insert 0.8mm F 0.8mm 0.8mm For Flat Cable 0.8mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-063-11 C6A 8P8C-F UTP-0.6mm RJ45 Modular Plug Cat.6A 8P8C-F 2 Layers with insert 0.6mm F 0.6mm 0.6mm For Flat Cable 0.6mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
