Shielded

Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot
Series Pitch
 Photo PDF 產品列表 產品編號搜尋 其他代工資訊
P8-074-7 CAT6 Shielded RJ45 with External Ground 8P8C-F
P8-042-9 C6 Shielded RJ45 Modular Plug 8P8C-F

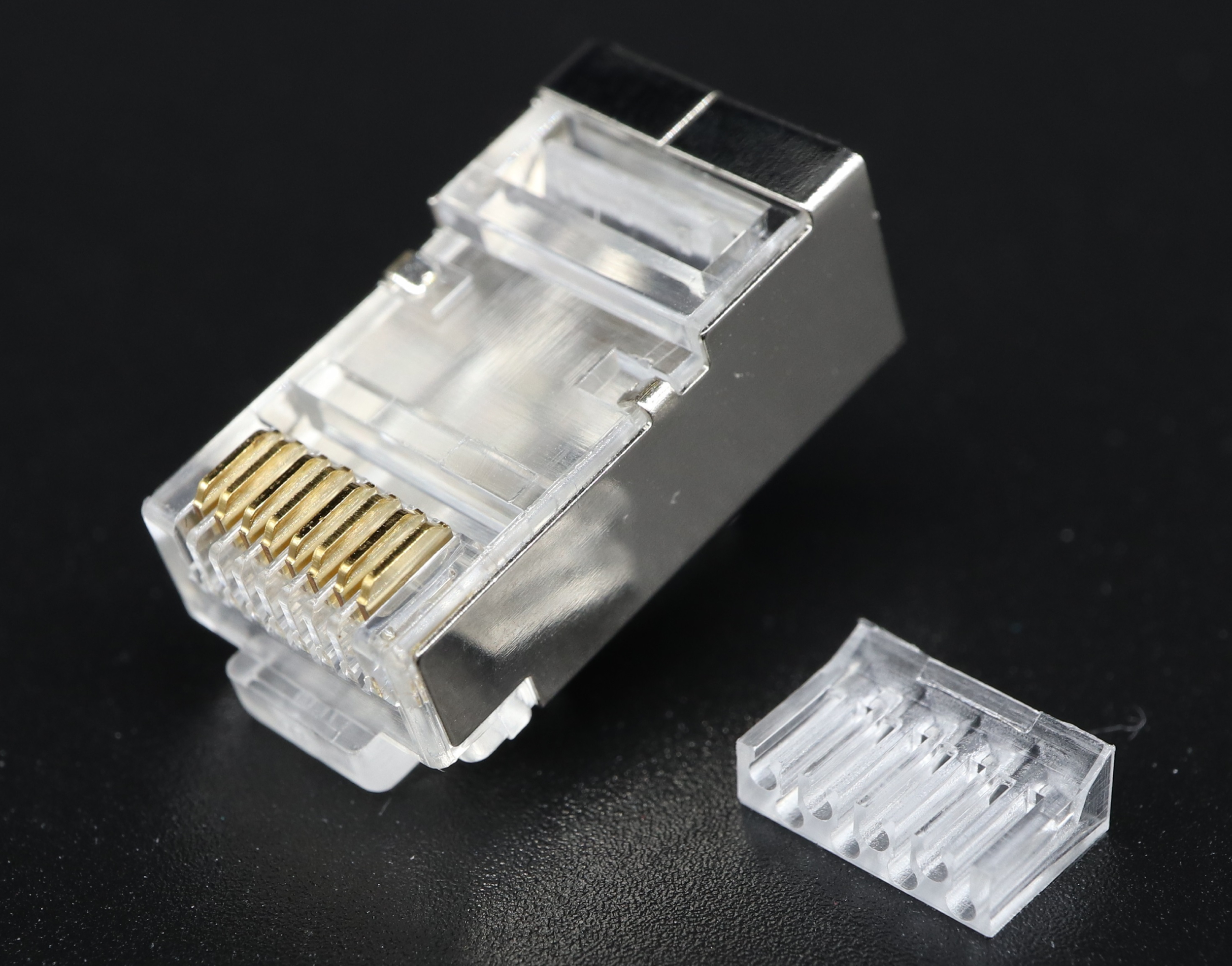

P8-031-10 C6 8P8C-F STP-1.14mm with Hook RJ45 Modular Plug Cat.6 8P8C-F Shielded with hook and insert 1.14mm F 1.14mm 1.14mm For Flat Cable 1.14mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A N/A

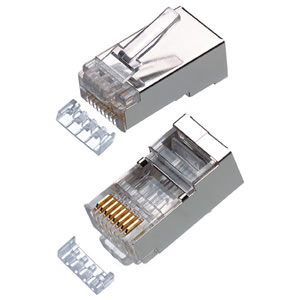

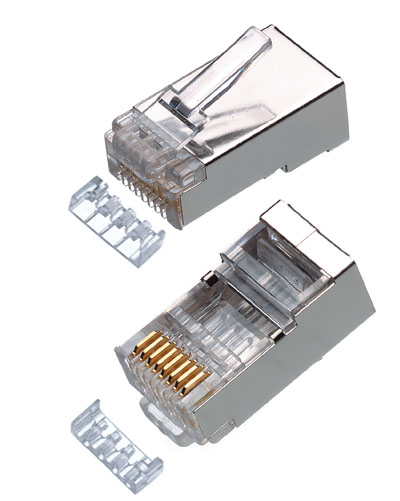

P8-019 8P8C-F 2 Layers-Shielded-W/Insert 8P8C-F 雙排 二件式 鐵 24~26 AWG
P8-020-10 C6 8P8C-F STP RJ45 Modular Plug Cat.6 8P8C-F Shielded 2 layers F N/A 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032F PM-L2182R
P8-031 C6 8P8C-F STP RJ45 Modular Plug Cat.6 8P8C-F 2 layers Shielded with insert F N/A 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-031-3 C6 8P8C-F STP-1.14mm RJ45 Modular Plug Cat.6 8P8C-F Shielded 2 layers with insert 1.14mm F 1.14mm 1.14mm For Flat Cable 1.14mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-035 C6 8P8C-F STP RJ45 Modular Plug Cat.6 8P8C-F Shielded 2 layers with insert and divider F 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R

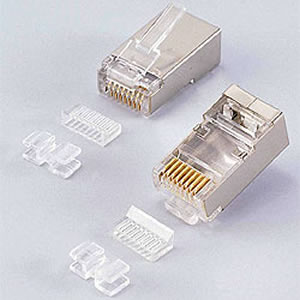

P8-042 8P8C-F-V W/Bevel 2Insert-2-Shielded 8P8C-F-V 斜度三件式鐵支架 （2.85) -2 24~26 AWG
P8-042-2 8P8C-F-V Shielded-W/
Bevel 2 inserts-2-(Flute on soleplate)
(shield N/flute) 		8P8C-F-V 斜度三件式鐵支架 （3.50） -2 舌片刻破 鐵殼無舌片 24~26 AWG

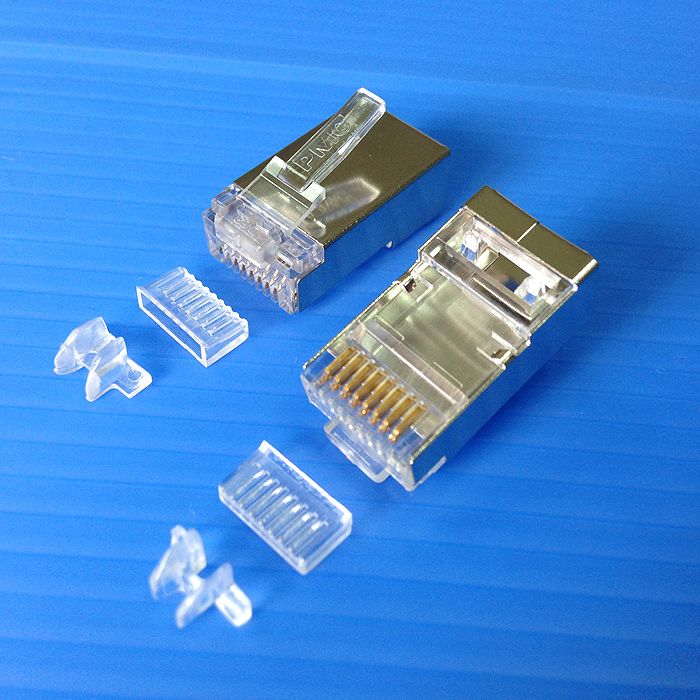

P8-043 8P8C-F-V Shielded-W/Bevel 2Insert-3-
(Flute on soleplate)		 8P8C-F-V 斜度三件式鐵2.85支架-3舌片刻破 鐵殼有舌片 24~26 AWG
P8-050-1 C6 8P8C-F-RV STP RJ45 Modular Plug Cat.6 8P8C-F-RV Shielded with insert and divider F-RV 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-060 C6 8P8C-F STP-Hook Molding Use(Patented) RJ45 Modular Plug Cat.6 8P8C-F Shielded with hook, insert and divider for Molding F 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-001 PM-L2182R , Need to remove the die of strain relief
P8-070-2 C6 8P8C-F-RV STP-0.45mm Flat Cable RJ45 Modular Plug Cat.6 8P8C-F-RV Shielded with insert 0.45mm F for super flat cable 0.45mm 0.45mm For flat cable 0.45mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-L2182R
P8-070-3 C6 8P8C-F-RV STP-0.6mm RJ45 Modular Plug Cat.6 8P8C-F-RV Shielded with insert 0.6mm F-RV 0.6mm 0.6mm For Flat cable 0.6mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-L2182R
P8-020-12 C6 8P8C-F STP-1.2mm RJ45 Modular Plug Cat.6 8P8C-F Shielded 2 layers with conductor 1.2mm F N/A 1.2mm For Flat Cable 1.2mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032F PM-L2182R
P8-042-33A C6 8P8C-F-V STP-1.09mm Gold Plated Shell RJ45 Modular Plug Cat.6  8P8C-F-V Gold plated shell with insert 1.09mm and divider F-V 1.09mm 1.09mm For Flat Cable 1.09mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-055 C6 8P8C-F STP RJ45 Modular Plug with special Boot Cat.6 8P8C-F Half shielded with insert and Special Boot F 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-022 PM-L2182R without Strian Relief part
