41401 Series
.163"(4.14mm) Wire-to-Wire Crimp Terminal Housings- Current rating: 5A AC, DC.(AWG#18)
- Voltage Rating: 300V AC,DC
- Withstanding Voltage: 1500V AC/minute.
- Insulation resistance: 1000MΩ min
- Contact resistance: Initial Value/ 20mΩ max
- Temperature rise: -25'C ~ 85'C.
-

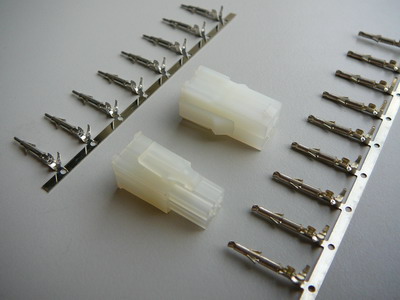

41401TF-X-X-X 4.14 mm Female Crimp Terminal
41401HM-X-X-X 4014 mm Male Crimp Terminal Housings
41401TM-X-X-X 4.14 mm Male Crimp Terminal
41401 HF-X-X-X 4.14 mm Female Crimp Terminal Housings
Total of 4 results
