Path > Our Products > Connectors > Ear Phone Jack, DIN Jack > DC Power Jack

Select Category :

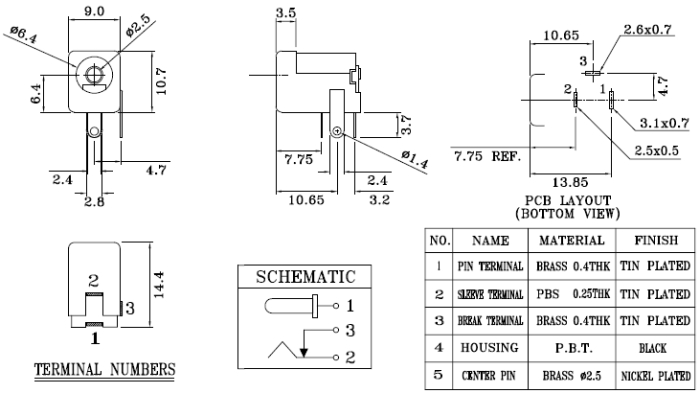

KD-014A

PIN TERMINAL
Material:Brass 0.4THK
Finish:Tin Plated

SLEEVE TERMINAL
Material:PBS 0.25THK
Finish:Tin Plated

BREAK TERMINAL
Material:Brass 0.4THK
Finish:Tin Plated

Housing
Material:P.B.T
Finish:Black

CENTER PIN
Material:Brass 2.5
Finish:Nickel Plated
