 More Specations
|
|
Notebook Connector |
|
Mini PCI DIMM Socket |
|

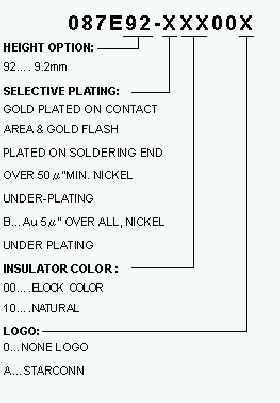

Available for 9.2mm, height |
|
|
|
Materials |
|
|
Insulators: |
VECTRA L.C.P.+30%G.F. ,UL94V-0 |
|
|
Contacts: |
Phosphor Bronze C5210R-SH. |
|
|
Latch: |
Steel,JIS SUS304R-1/2H. |
|
|
|
|
|
Electrical |
|
|
Contact Current Rating: |
0.3 Amp |
|
|
Contact Resistance: |
30 MΩ max. |
|
|
Dielectric Withstanding Voltage: |
250 VAC for 1 mins (sea level) |
|
|
Insulation Resistance: |
500 MΩ min. at 100V DC |
|
|
|
|
|
Mechanical |
|
|
Contact Retention Force: |
180 gf min. |
|
|
Contact Normal Force： |
50gf MIN. |
|
|
|
|
|
Environmental |
|
|
Temperature Rating: |
-40℃ to 85℃ | |
