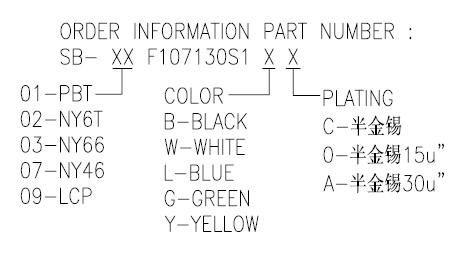

SB-XXF107130S1XX   SATA II 7P PITCH=1.27mm STRAIGHT ANGLE MALE WITH SHELL DIP TYPE

More Specations

MATERIAL
 ◆ Housing: High Temperature Thermoplastic UL94V-0
 ◆ Contact: Copper Alloy
 ◆ Shell: Copper Alloy
PLATING
 ◆ Contact Area: Gold Plated Over Ni
 ◆ Solder tail: 100u" Min Tin Plated Over Ni
Electrical
 ◆ Contact Resistance: 40 Milliohms
 ◆ Dielectric Withstanding Voltage: 500V AC
 ◆ Current Rating: 1.5A
 ◆ Voltage Rating: 500V AC
Environmental
 ◆ Operating Temperature: -55°C To +85°C
