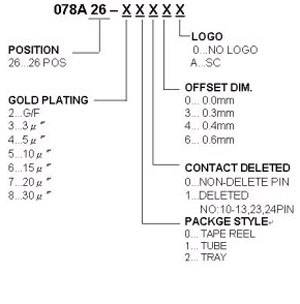

26 pos

Reliable Design on Cable Side for strain

Materials

Insulators of Board side:

UL 94V-0 thermoplastic polyester, color black

Insulators of Cable side:

UL 94V-0 thermoplastic polyester, color black

Contacts:

Phosphor Bronze

Electrical

Contact Current Rating:

0.5Amp

Contact Ressistance:

35 milliohms max.

Rated Voltage:

150Vac

Dielectric Withstanding Voltage:

1000V r.m.s. for 1 minute(Sea level)

Insulation Ressistanece:

500 Megaohm min

Mechanical

Contact Retention:

600gf min

 Latch Retention Force:

6.0kgf min.

Plarzation and Key Force:

6.0kgf min.

Environmental

Working Temperature:

-20℃ to 70℃
