Path > Our Products > Connectors > SATA Series > SATA 7P 180°

Select Category :

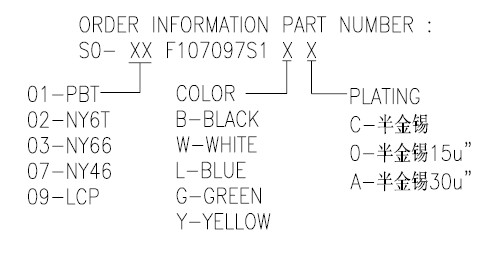

SO-XXF107097S1XX SATA 7P PITCH=1.27mm STRAIGHT ANGLE DIP TYPE

View enlargement

More Specations

MATERIAL
◆ Housing: High Temperature Thermoplastic UL94V-0
◆ Contact: Copper Alloy
◆ Boardlock: Copper Alloy
PLATING
◆ Contact Area: Gold Plated Over Ni
◆ Solder tail: 100u" Min Tin Plated Over Ni
Electrical
◆ Contact Resistance: 40 Milliohms
◆ Dielectric Withstanding Voltage: 500V AC
◆ Current Rating: 1.5A
◆ Voltage Rating: 500V AC
Environmental
◆ Operating Temperature: -55°C To +85°C
