Path > Our Products > Switch > Rocker Switch

Select Category :

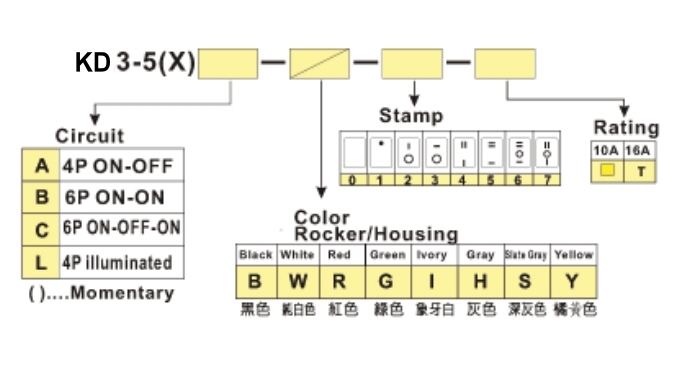

KD3-5(X) Series

View enlargement

More Specations

Specifications
  ˙Rating : H : 10A 125 VAC/6A 250VAC
                         6(2)A 250VAC T125
                   T : 16A 125VAC/10A 250VAC
                        1/3HP 125~250VAC T105
  ˙Contact Resistance : 20mΩ(max.)
  ˙Insulation Resistance : DC 500V 100MΩ(min.)
  ˙Dielectric Strength : 1500VAC/1 Minute
  ˙Safety Approval :

Please write down your comment on this product
