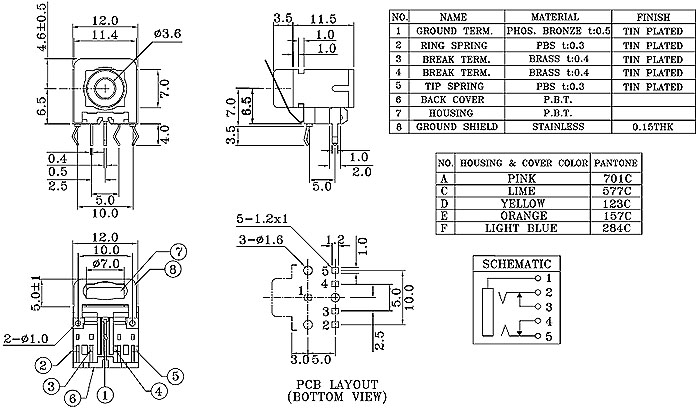

KD-2501G 3.5Φ PHONE JACK

GROUND TERM
MATERIAL:Phos.Bronze t:0.5
FINISH:Tin Plated

RING SPRING
MATERIAL:PBS t:0.3
FINISH:Tin Plated

BREAK TERM
MATERIAL:Brass t:0.4
FINISH:Tin Plated

TIP SPRING
MATERIAL:PBS t:0.3
FINISH:Tin Plated

BACK COVER
MATERIAL:P.B.T

HOUSING
MATERIAL:P.B.T

GROUND SHIELD
MATERIAL:Stainless
FINISH:0.5THK
