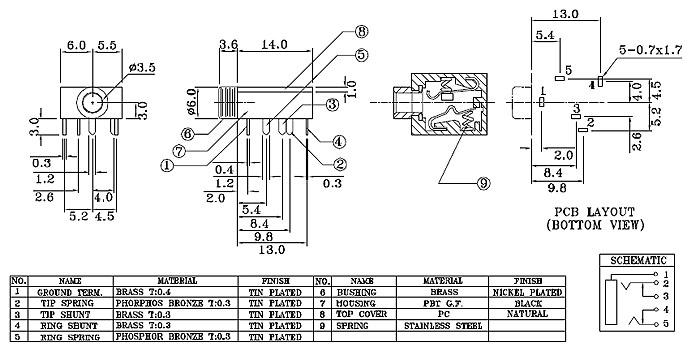

KD-018A 3.5Φ EARPHONE JACK

GROND TERM
MATERIAL:Brass T:0.4
FINISH:Tin Plated

TIP SPRING
MATERIAL:Phorphos Bronze T:0.3
FINISH:Tin Plated

TIP SHUNT
MATERIAL:Brass T:0.3
FINISH:Tin Plated

RING SHUNT
MATERIAL:Brass T:0.3
FINISH:Tin Plated

RING SPRING
MATERIAL:Phosphor Bronze T:0.3
FINISH:Tin Plated

BUSHING
MATERIAL:Brass
FINISH:Nickel Plated

HOUSING
MATERIAL:PBT C.F
FINISH:Black

TOP COVER
MATERIAL:PC
FINISH:Natural

SPRING
MATERIAL:Stainless Steel
