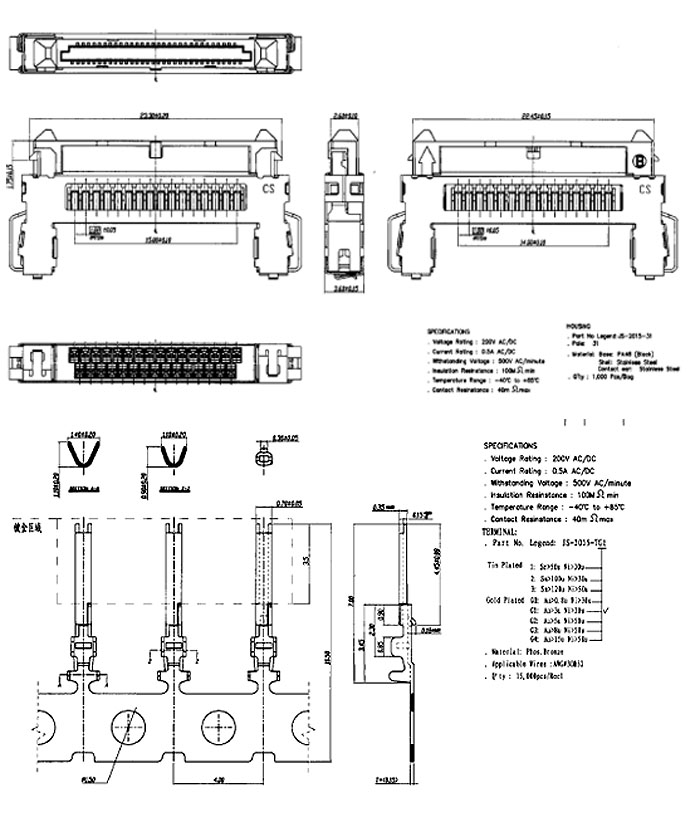

JS-2015-XX,JS-2015-TG1 1.0mm pitch PLUG

View enlargement

More Specations

Specification
Poles: 31
Voltage rating: 200V AC/DC
Current rating: 0.5A AC/DC
Withstanding Voltage: 500V AC/minute
Insulation resistance: 100MΩ min.
Temperature range: - 40℃ to + 85℃
Contact resistance: 40mΩ max.

Type	Type
Housing	Terminal
Part No.	Part No.
JS-2015-XX	JS-2015-TG1
Description	Description
Poles: 31 Material: PA46 (Black) Q'ty: 1,000 pcs/Bag	Applicable wires: AWG# 30&32 Material: Phos. Bronze Finish: Tin Plated,Gold Plated Q'ty: 15,000 pcs/Rrrl
