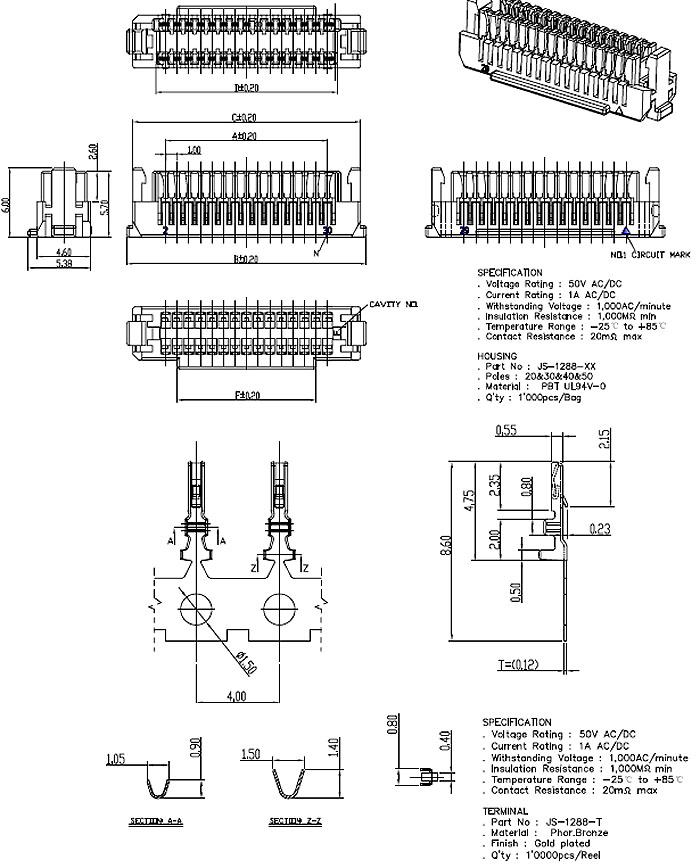

JS-1288-XX,JS-1289-XX,JS-1288-T   1.0mm pitch Crimp Style Connectors (SMT type)

More Specations

Specification
Poles: 20,30,40,50
Voltage rating: 50V AC/DC
Current rating: 1A AC/DC
Withstanding Voltage: 1000AC/minute
Insulation resistance: 1000MΩ min
Temperature range: - 25℃ to + 85℃
Contact resistance: 20mΩ max.



Type Type Type
Housing wafer Terminal
Part No. Part No. Part No.
JS-1288-XX JS-1289-XX JS-1288-T
Description Description Description

Poles: 20,30,40,50
Material: PBT UL94V-0
Q'ty: 1000pcs/Bag

Poles: 20,30,40,50
Material: Contact : Phosphor Bronze, Gold Plated
Base : PA9T UL94V-0
Q'ty: 1000pcs/Tape & Reel

Material: Phor.Bronze
Finish: GOLD Plated
Q'ty: 10000pcs/Reel
