 More Specations
|

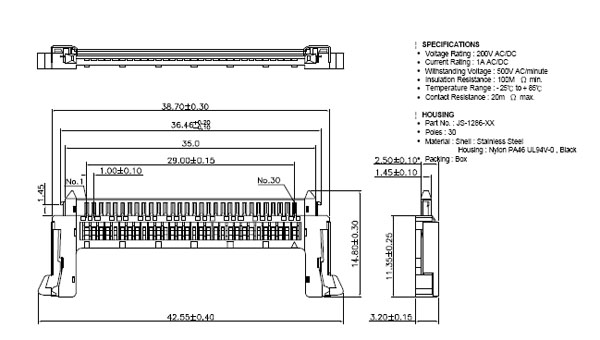

Specification
Poles: 30
Voltage rating: 200V AC/ DC
Current rating: 1A AC/ DC
Withstanding Voltage: 500V AC/minute
Insulation resistance: 100MΩ min
Temperature range: - 25℃ to + 85℃
Contact resistance: 20mΩ max.
| Type |
| Housing |
| Part No. |
| JS-1286-XX |
| Description |
Poles: 30
Material: Nylon PA46 UL-94V-0 , Black
Q'ty: 100 pcs/Tray
| | |
