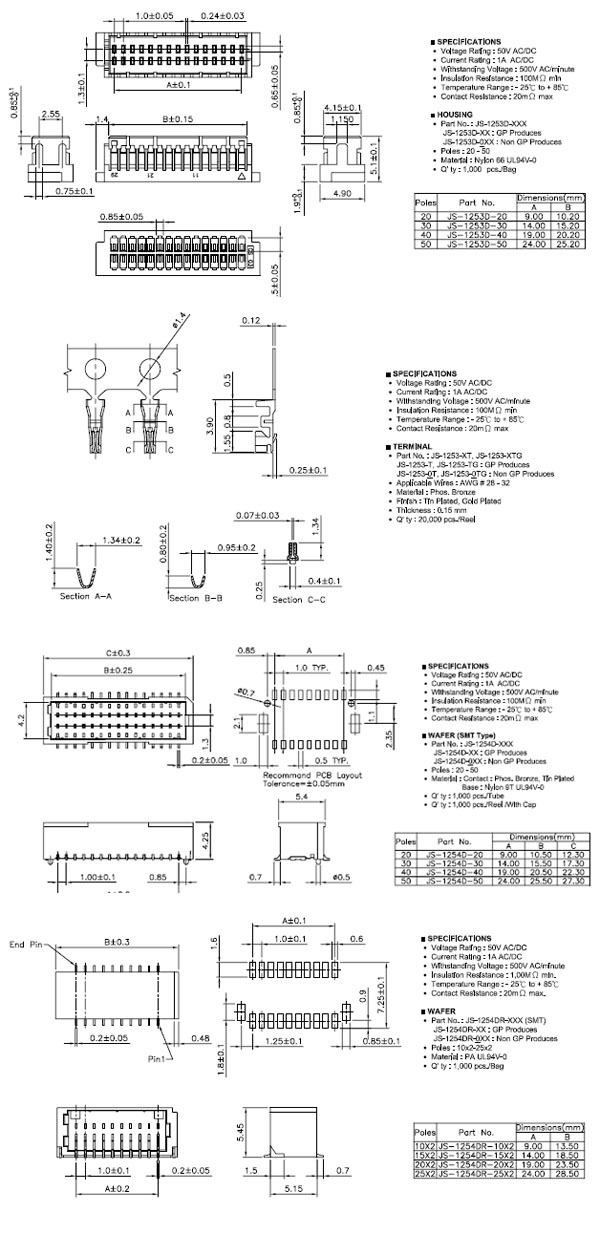

JS-1253D,JS-1254D Series 1.0mm pitch Crimp Style Connectors (SMT type)

View enlargement

More Specations

Specification
Poles: 20-50
Voltage rating: 50V AC/ DC
Current rating: 1A AC/ DC
Withstanding Voltage: 500V AC/minute
Insulation resistance: 100MΩ min.
Temperature range: - 25℃ to + 85℃
Contact resistance: 20mΩ max.

Type	Type	Type
Housing	wafer	Terminal
Part No.	Part No.	Part No.
JS-1253D	Part No.: JS-1254D	JS-1253T
Description		Description
Part No.: JS-1253D Poles: 20 - 50 Material: Nylon 66 UL94V-0 Q'ty: 1,000 pcs/Bag	Poles: 20 - 50 Material: Contact : Phos.Bronze, Tin Plated Base : Nylon PA46 UL94V-0 Q'ty: 1,000 pcs/Tube & Reel/With Cap	Applicable wires: 28~32 Material: Phos. Bronze Finish: Tin or Gold Plated Thickness: 0.12 Q'ty: 20000 per Reel
