 More Specations
|
Specification
Poles: 2~15
Voltage rating: 50V AC/ DC
Current rating: 1A AC/ DC
Withstanding Voltage: 500V AC/minute
Insulation resistance: 100MΩ min.
Temperature range: - 25℃ to + 85℃
Contact resistance: 20mΩ max.

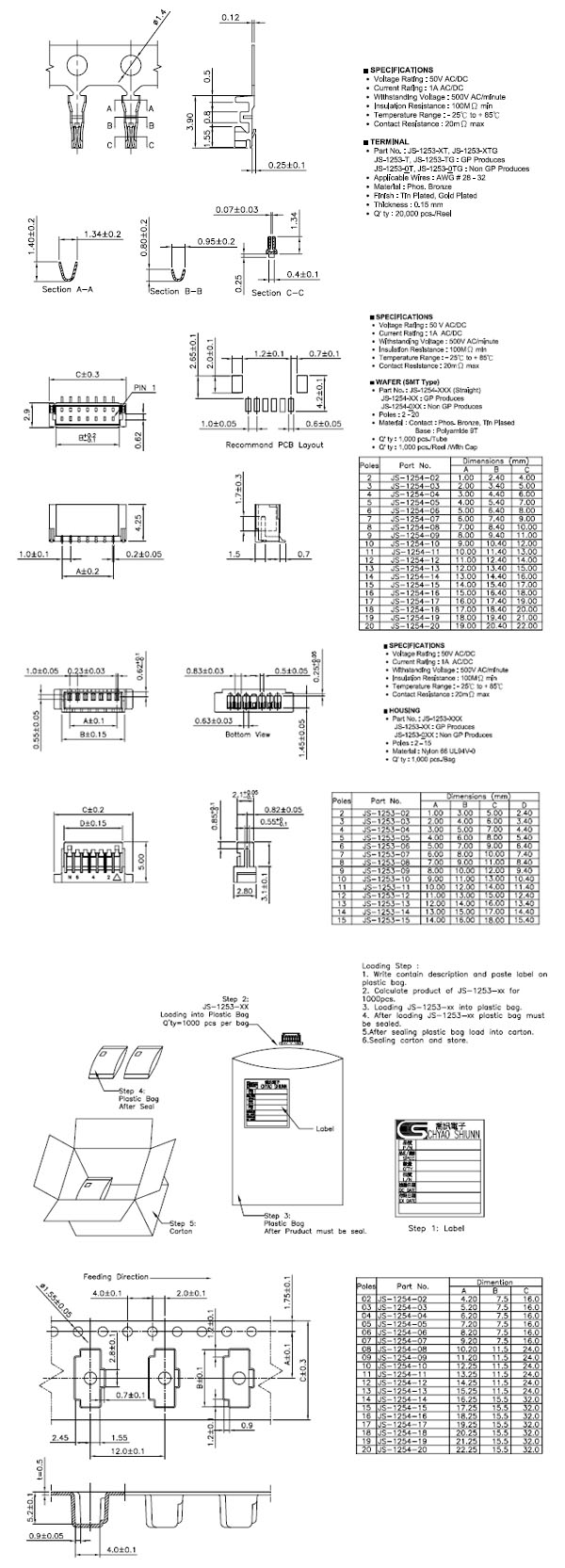

| Type |
Type |
| Housing |
Terminal |
| Part No. |
Part No. |
| JS-1253 |
JS-1254 (Straight), JS-1254R (Right Angle) |
| Description |
Description |
Poles: 2 - 15
Material: Nylon 66 UL94V-0
Q'ty: 1,000 pcs/Bag |
Poles: 2 - 15
Material: Contact : Phos.Bronze, Tin Plated
Base : Nylon PA46 UL94V-0
Q'ty: 1,000 pcs/Tape & Reel
| | |
