 More Specations
|

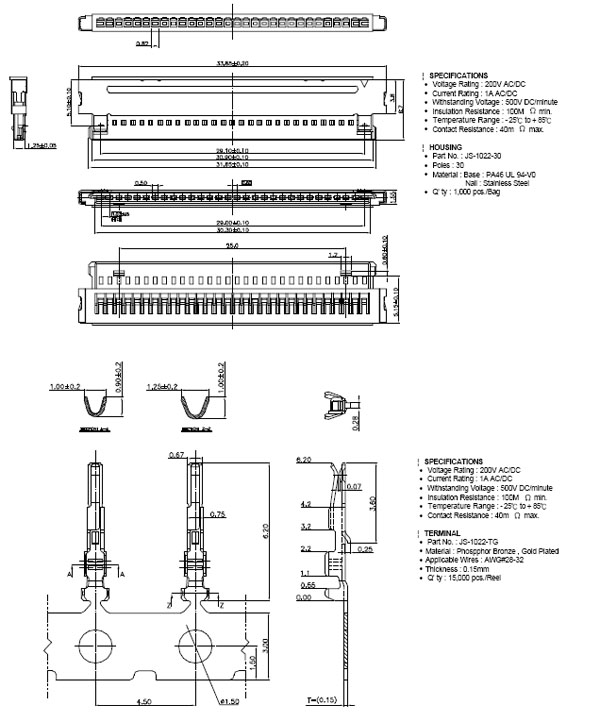

Specification
Poles: 30
Voltage rating: 200V AC/ DC
Current rating: 1A AC/ DC
Withstanding Voltage: 500V DC/minute
Insulation resistance: 100MΩ min.
Temperature range: - 25℃ to + 85℃
Contact resistance: 40mΩ max.
|
| Type |
Type |
| Housing |
Terminal |
| Part No. |
Part No. |
| JS-1022-30 |
JS-1022-TG |
| Description |
Description |
Poles: 30
Material: Base : Nylon PA46 UL94V-0
Q'ty: 1,000 pcs/Bag |
Applicable wires: AWG# 28-32
Material: Phos. Bronze
Finish: Tin Plated,Gold Plated
Thickness: 0.15mm
Q'ty: 20,000 pcs/Reel | | |
