Path > Our Products > Connectors > Pin Header > 1.27mm H=2.50mm

Select Category :

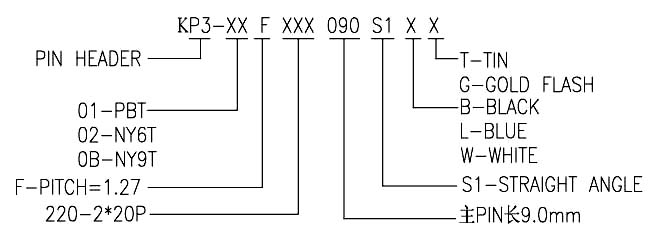

KP3-XXFXXX090S1XX Pin Header Pitch=1.27mm Dual Row Straight Angle Type

View enlargement

More Specations

◆ Material
    Housing: High Temperature Thermoplastic UL94V-0
    Contact: Copper Alloy.
◆ Plating
    Contact area : Gold Plated Over Ni.
◆ Electrical
    Contact Resistance: 30 Milliohms
    Insulation Resistance: 100 Megohms
    Dielectric Withstanding: 500V AC
    Current Rating: 4.0A
    Voltage Rating: 250V AC
◆ Environmental
    Operating Temperature: -40℃ To +105℃
