Path > Our Products > Connectors > SATA Series > SATA 7P 90°

Select Category :

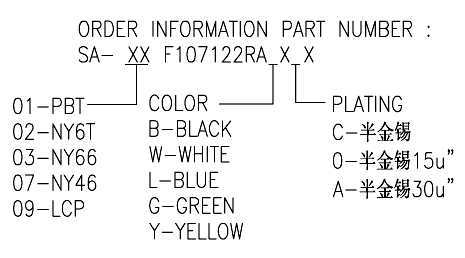

SA-XXF107122RAXX SATA 7P Pitch=1.27mm Right Angle Male DIP Type

View enlargement

More Specations

Material
◆ Housing: High Temperature Thermoplastic UL94V-0
◆ Contact: Copper Alloy
◆ Boardlock: Copper Alloy
Plating
◆ Contact Area: Gold Plated Over Ni
◆ Solder Tail: 100U" Min Tin Plated Over Ni
Electrial
◆ Contact Resistance: 40 Milliohms
◆ Dielectric Withstanding Voltage: 500V AC
◆ Current Rating: 1.5A
◆ Voltage Rating: 500V AC
Environmental
◆ Operating Temperature: -55℃ To +85℃

Please write down your comment on this product
