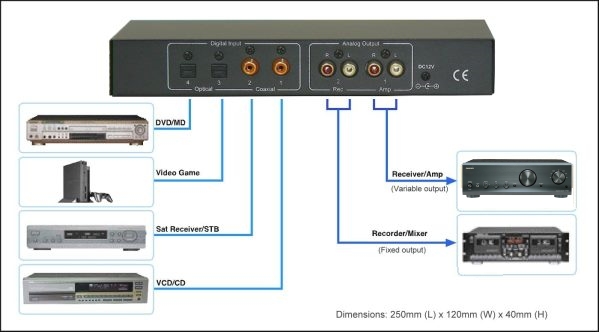

The TC-7510 features four exceptional quality digital inputs (two each optical and RF/coax), any one of which can be selected to appear
at the parallel analogue RCA outputs as well as at the headphone output.

Use the TC-7510 when you need to add four digital inputs to an existing all-analogue receiver or amp, or to provide four additional digital inputs
when the existing ones are insufficient or of low quality. It can also serve as a stand-alone headphone amp, or to allow HP monitoring of a digital
source while the main amp sends a different source to the speakers. Lastly, the TC-7510 can be used to add digital input capability to mixing
boards, public address systems or any other type of analogue amplifier.

The TC-7510 easily outperforms the low-resolution D/A converters found in low-and mid-priced audio receivers and amplifiers, providing wider
dynamic range and superior musicality.




Features:
․Select from any one of four digital inputs (two Optical, two Coax)
․Two analogue stereo outputs and one stereo headphone output
․Compact metal steel case with stylish design
․Studio reference quality D/A converter from arguably the most famous name in D/A IC manufacturing
․Built in outstanding headphone amplifier which consist of Class A biased 5532 low noise, dual OP amp as found in
    many sound studio mixing decks to ensure analogue integrity at the output stage

Technical information:
a. Comprising the digital chipset are a Crystal CS 8414 input receiver and a Burr-Brown PCM 1716 96KHz/24 bit converter.
b. Two AES/EBU coaxial inputs and two optical (Toslink) inputs are provided.
c. Two analogue outputs via RCA stereo sockets:
    1. One variable output which the level is controlled by volume control in front panel,
    2. One fixed line level output.
　

As PCM1716 do not decode the 5.1 encoded audio, it decode stereo audio only, thus if the the TV or DVD player connected to
TC-7510 the outputs  is 5.1 ONLY, this will result no sound output from TC-7510.
　

Specification:
