TC-37　Audio Combination Control
View Enlargement

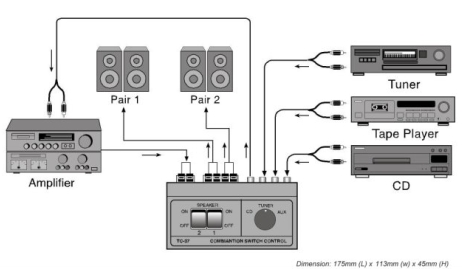

A audio combination switching box designed to switch 2 pairs of loudspeakers from your amplifier. make it possible to listen  to either pair on 2 pairs together. The minimum load to the amplifier is 4 ohms with 8 ohms speaker connected or 150 ohms with all speakers switched off.

The audio input selector enables you to select 3 different line sources such as CD,Tuner or TV sound feeding your amplifier.
　



　

Features:

․Passive device, no power required
․Speaker control and audio input control in one box.
․Power rating maximum 200W music power per channel.
․Suitable for speakers from 4 ohms to 16 ohms.
․Gold plated RCA sockets for sound input/output.
․Stylish strong metal box.



　

Packing

Weight

Export carton

N.W

G.W

Dimension

Blister

600gm

30 pcs

17.6kg

19.6kg

2.3
