The TC-761 is a state-of-the-art
audio/video distribution amplifier designed for demanding applications. its
compact design

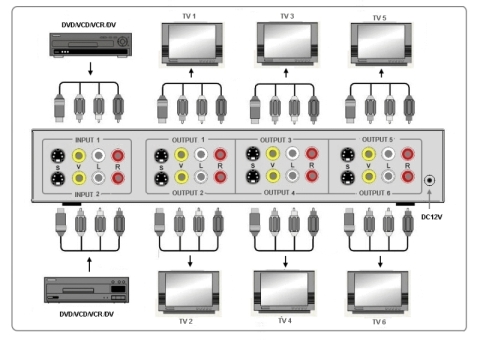

accepts either two S-video or two composite video A/V inputs;
the selected input feeds all six outputs.
The outputs can drive TV, monitor or plasma screens without video picture
degradation or interference between the
outputs,
regardless of how many are active. A built-in headphone amplifier
allows private listening.
Input selection can be either manual (switch-selected) or automatic. In auto
mode, input (1) has priority whenever
active,
with input (2) being the default when there is no activity for ten
seconds or longer on input (1).
The presence of video sync signals determines whether an input is judged
"active", so if used with audio only sources, auto
selection is disabled
|
Features:
․Two inputs: S-Video, RCA
composite video & stereo audio inputs
․Six outputs: S-Video, RCA composite video &
stereo audio outputs
․Auto-detect or manual source selection
․Built-in video amplifier
maintains output isolation
․Built-in headphone amplifier
․User-friendly design:
easy and safe to use
․Gold-plated input/output
connector
․Sturdy, stylish metal
cabinet
․AC/DC power adapter
included
|
Specifications:
| ․Video input level |
1.0Vp-p, 75 Ohms |
| ․Video output level: |
1.0Vp-p, 75 Ohms |
| ․Video system: |
PAL,NTSC or SECAM |
| ․Audio input level: |
-20dB, 25k Ohms |
| ․Frequency response: |
20-20Kha (-3dB) |
| ․HP output: |
500mW max. |
| ․HP impedance: |
16-64 Ohms |
| ․Power supply: |
12V DC |
| ․Dimension: |
292mm (L) x 145mm (W)
x39(H)mm |
|
Packing |
Weight |
Export carton |
N.W |
G.W |
Dimension |
| Gift box |
1422 gm |
10 pcs |
15.5kg |
17kg |
2.2' |
|
