Specification
Voltage rating: 600V AC, DC
Current rating:9A AC/DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range:-40°C; - +105°C
Contact resistance:Initial Vaule / 20m max.
After environmental
testing/20m max.after environmental testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-1148S, JS-1149S |
JS-1150S, JS-1151S (Straight)
JS-1152S, JS-1153S (Right Angle) |

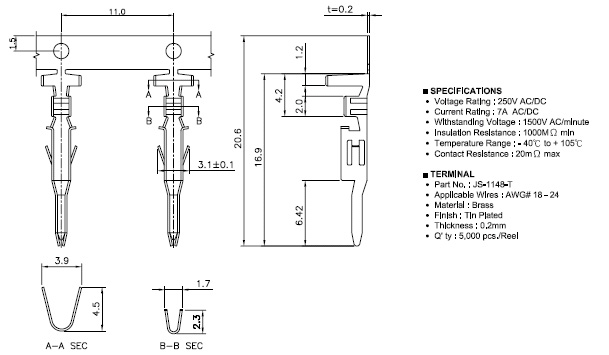

JS-1148-T, JS-1149-T |
| Description |
Description |
Description |
| Poles:2-6
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Poles: 02-6
Material:Contact : Brass, Tin plated
Base : Nylon 66 UL94V-2
Q'ty: 1000 pcs/bag |
Applicable wires: AWG# 18 -24
Material:Brass
Finish:Tin plated
Thickness:0.2mm
Q'ty: 5,000 pcs/reel |
|
