Specification
Voltage rating: 250V AC, DC
Current rating:5A AC DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range:-40°C; - +85°C
Contact resistance:Initial Vaule / 20m max.
After environmental
testing/20m max.after environmental testing/20m max
| Type |
Type |
| Housing |

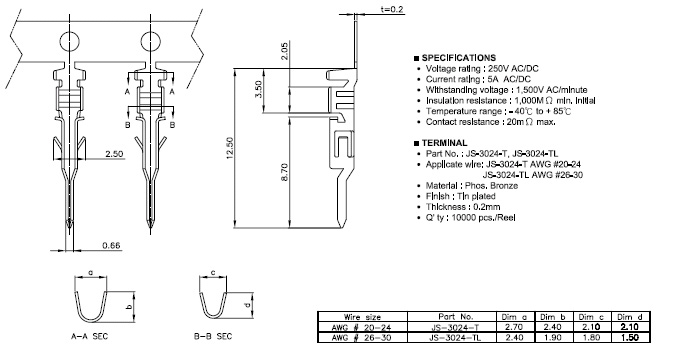

Terminal |
| Part No. |
Part No. |
| JS-3024-XX, JS-3024-XXW0/E,JS-3025-XX |
JS-3024-T,JS-3025-T
JS-3024-TL,JS-3025-TL |
| Description |
Description |
| Poles:2-24
Material: Nylon 66 UL 94V-0
Q'ty: 1,000 pcs/Bag |
Applicable wires: JS-3024-T,JS-3025-T AWG# 20-24
JS-3024-TL,JS-3025-TL AWG# 26-30
Material: Phos. Bronze
Finish:Tin plated
Thickness:0.2mm
Q'ty: 10,000 pcs/reel |
|
