Specification
Voltage rating: 250V AC, DC
Current rating:3A AC DC
Withstanding Voltage: 700V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range:-25°C - +85°C
(Including temperature rise in applying electrical current)
Contact resistance:Initial Vaule / 20m max.
After environmental
testing/20m max.after environmental testing/20m max
| Type |
Type |
| Housing |
Terminal |
| Part No. |
Part No. |
| JS-6503,JS-6504 |

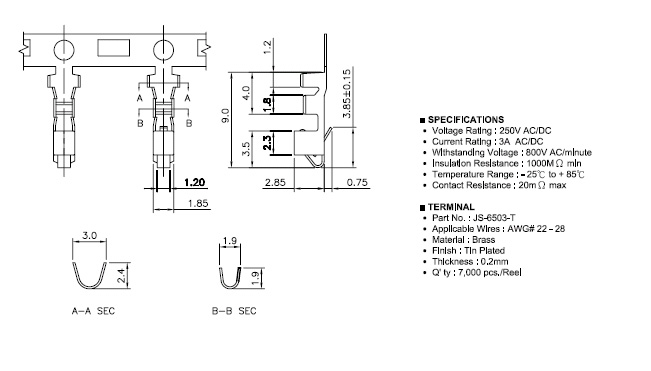

JS-6503-T,JS-6504-T |
| Description |
Description |
Poles:2-12(Single Row)
16,18(Double Row)
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Applicable wires: AWG #22~28
Material:Brass
Finish:Tin plated
Thickness:0.2mm
Q'ty: 7000 pcs/reel |
|
