Specification
Voltage rating: 600V AC, DC
Current rating:9A - 15A AC/DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range:-25°C ~ +90°C
Contact resistance:Initial Vaule / 20m max.
After environmental testing/20m max
| Type |
Type |
| Housing |
Terminal |
| Part No. |
Part No. |

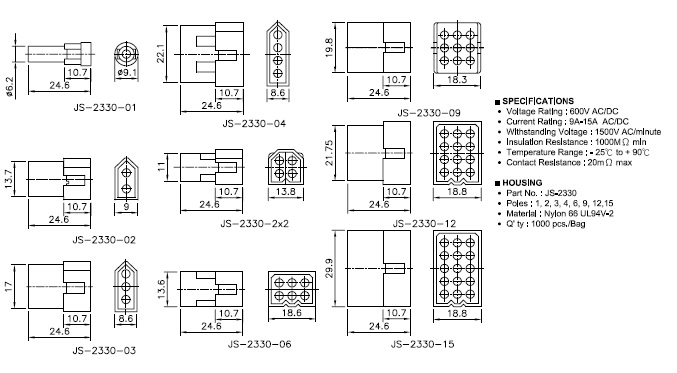

JS-2330,JS-2330B-xxE
JS-2430,JS-2430B-xxE |
JS-2330BS-2L,JS-2430BS-2L |
| Description |
Description |
Poles:1 (Without Mfg. Ears)
2, 3, 4, 6, 9,12,15 (Without Mfg. Ears or With Mfg. Ears)
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Applicable wires: AWG #22 ~ 28
Material:Brass
Finish:Tin plated
Thickness:0.25mm
Q'ty: 5,000 pcs/reel |
|
