Specification
Voltage rating: 600V AC, DC
Current rating:9A - 15A AC/DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range:-25°C ~ +90°C
Contact resistance:Initial Vaule / 20m max.
After environmental
testing/20m max.after environmental testing/20m max
| Type |
Type |
| Housing |
Terminal |
| Part No. |
Part No. |

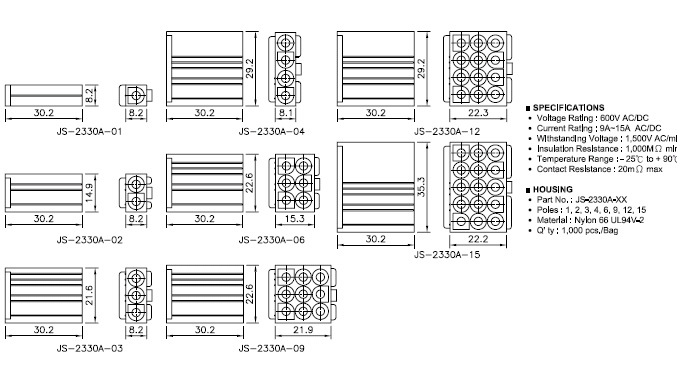

| JS-2330A, JS-2330A-xxE, JS-2430A |
JS-2330BS-2, JS-2430BS-2 |
| Description |
Description |
| Poles:1, 2, 3, 4, 6, 9,12,15
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Applicable wires: AWG #18~24
Material:Brass
Finish:Tin plated
Thickness:0.25mm
Q'ty: 3,500 pcs/reel |
|
