Specification
Voltage rating: 300 - 600V AC, DC
Current rating:9A - 15A
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range:-25°C ~ +90°C
(Including temperature rise in applying electronical current)
Contact resistance:Initial Vaule / 20m max.
After environmental testing/20m max
| Type |
Type |
| Housing |
Terminal |
| Part No. |
Part No. |

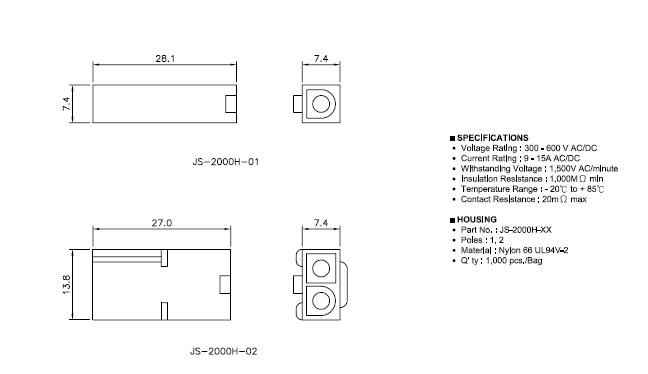

| JS-2000H,JS-2000W |
JS-2000H-TH,JS-2000W-TH
JS-2000H-TL,JS-2000W-TL |
| Description |
Description |
| Poles:1,2,3,,5,6,9,12,15
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Applicable wires: JS-2000H-TH,JS-2000W-TH(AWG# 14 - 18)
JS-2000H-TL,JS-2000W-TL (AWG# 18 - 22)
Material:Brass
Finish:Tin plated
Thickness:0.25mm
Q'ty: JS-2000H-TH, JS-2000W-TH - 3,500 pcs/Reel
JS-2000H-TL, JS-2000W-TL - 5,000 pcs/Reel |
|
