Specification
Voltage rating: 250V AC,DC
Current rating:6A
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range: - 25℃ to + 85℃
Contact resistance20m max
| Type |
Type |
| Housing |
Terminal |
| Part No. |
Part No. |

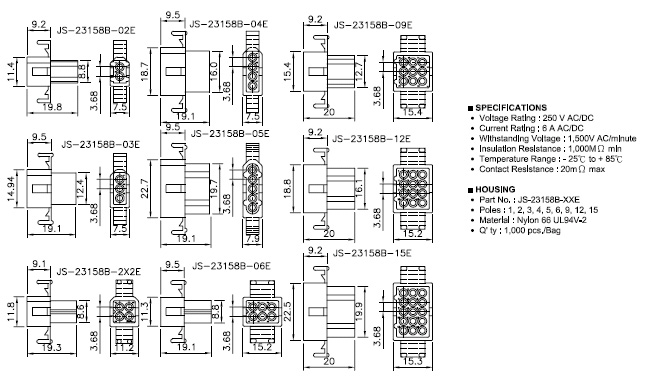

JS-23158,JS-23158B-xxE
JS-24158,JS-24158B-xxE |
JS-23158BS-2,JS-24158BS-2 |
| Description |
Description |
| Poles:1,2,3,,5,6,9,12,15
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Applicable wires: AWG #18~ 24
Material:Phos. Bronze
Finish:Tin plated
Thickness:0.25mm
Q'ty: 7,000 pcs/reel |
|
