Specification
Voltage rating: 250V AC,DC
Current rating: 7A AC,DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max.
| Type |
Type |
Type |
| Housing |

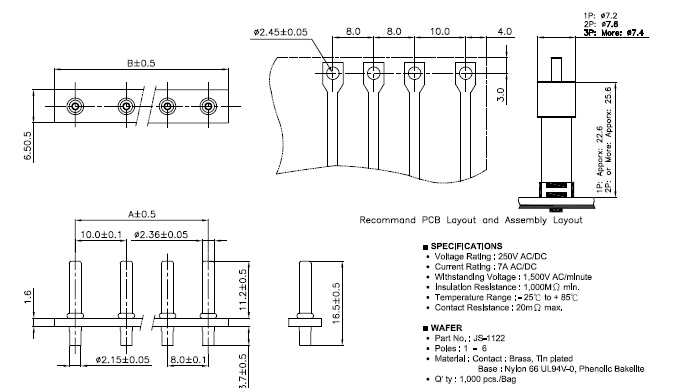

Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-1123, JS-1123-04S |
JS-1122 , JS-1122-xx (B) |
JS-1123-T , JS-1123-T (L) |
| Description |
Description |
Description |
| Poles:1 - 6, 4
Material: Nylon 66 UL 94V-0
Q'ty: 1,000 pcs/Bag |
Poles: 1-6
Material: Post : Brass Tin / plated
Base: Nylon 66 UL-94V-0 ,
Phenolic bakelite
Q'ty: 1000 pcs/bag |
Applicable wires: AWG #18 ~ 26
Material:Brass
Thickness:0.25mm
Q'ty: JS-1123-T - 15,000 pcs./Reel
JS-1123-T (L) - 7,000 pcs./Reel |
|
