Specification
Voltage rating: 250V AC,DC
Current rating: 7A AC,DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max.after environmental testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-1114-04W, JS-1114-04H |
JS-1114-04WS (Straight)
JS-1114-04WR (Right angle)
JS-1114-04HI,JS-1114-04HL
JS-1114P-04WS |
JS-1114-04WT, JS-1114-04HT |
| Description |
Description |
Description |
| Poles:04
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Poles: 04
Material: Contact : Brass, phos bronze Tin plated
Base : Nylon 66 UL94V-2
Q'ty: 1000 pcs/bag |

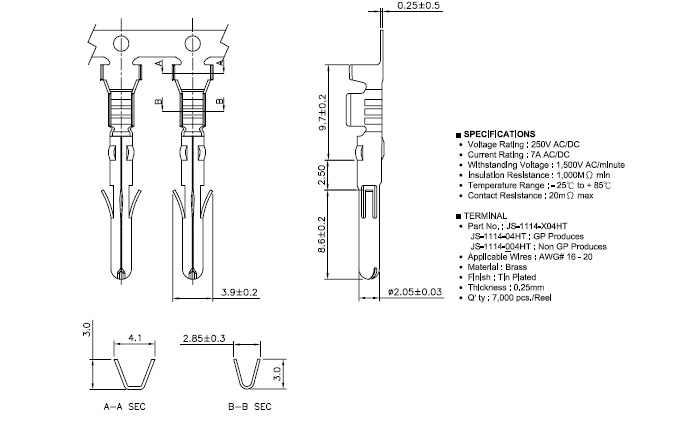

Applicable wires: JS-1114-04WT AWG# 16 – 20
JS-1114-04HT AWG# 18 - 22
Material:Brass
Thickness:0.25mm 0.3mm
Q'ty: 7,000 pcs/reel |
|
