Specification
Voltage rating: 250V AC,DC
Current rating: 7A AC,DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C(Including temperature rise in applying electronical current)
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-5080 |
JS-5081(JS-5010) (Straight)
JS-5081R(JS-5010R) (Right Angle) |

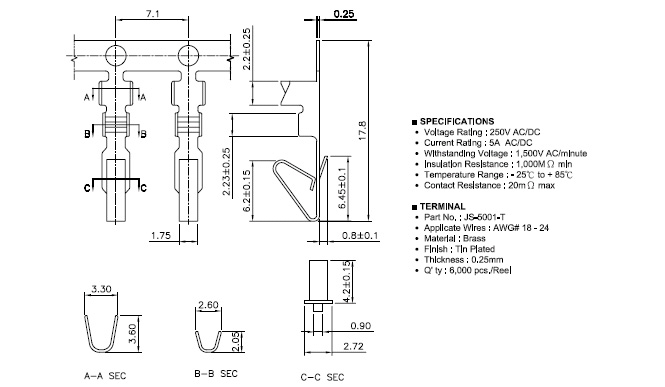

JS-5001-T ,JS-5001-T(G)
JS-5001-TA( 3 contacts ) |
| Description |
Description |
Description |
Poles:1-6Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Poles: 2-6
Material: Contact : Brass,Tin plated
Base: Nylon 66 UL 94V-2
Q'ty: 1000 pcs/bag |
Applicable wires: AWG# 18~24
Material:Brass
Thickness:0.25mm
Q'ty: 6,000 pcs/reel
JS-1102-T (L) - 6,000 pcs/Reel |
|
