Specification
Voltage rating: 250V AC,DC
Current rating: 5A AC,DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-1102 |
JS-1103-xx, JS-1103-xx (B) |
JS-1120-T / JS-1102-T (L) |
| Description |
Description |
Description |
Poles:1-6Material: Nylon 66 UL 94V-0
Q'ty: 1,000 pcs/Bag |
Poles: 1-6
Material: Contact : Brass Tin / plated
Base: Nylon 66 UL 94V-0 , or Phenolic bakelite
Q'ty: 1000 pcs/bag |

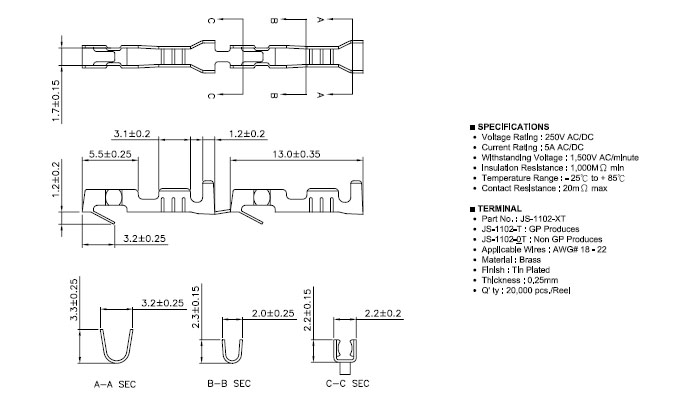

Applicable wires: AWG# 18~22
Material:Brass
Thickness:0.2mm
Q'ty: JS-1102-T - 20,000 pcs/Reel
JS-1102-T (L) - 6,000 pcs/Reel |
|
