Specification
Voltage rating: 600V AC,DC
Current rating: 1A AC,DC
Withstanding Voltage: 1800V AC/ minute
Insulation resistance: 500MΩ Min
Temperature range: -25°C ~ +85°C(Including temperature rise in applying electronical current)
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |

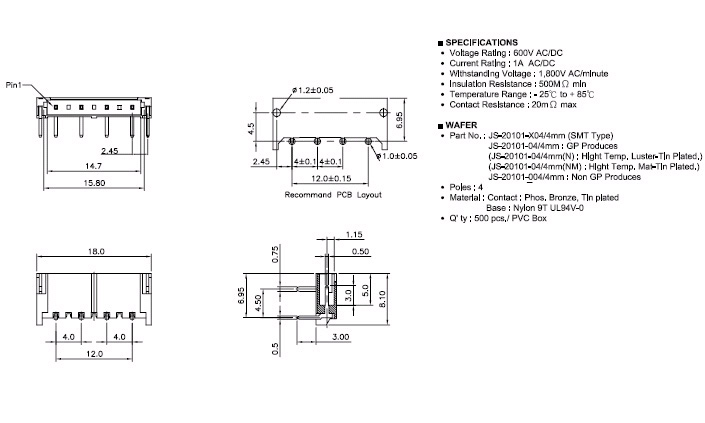

Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-2009 |
JS-2010 (SMT type)
JS-20101 (DIP type) |
JS-2009-T |
| Description |
Description |
Description |
Poles:02-4
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Poles: 02-4
Material: Contact: Phos. Bronze , Tin plated
Base: Nylon PA46 UL94V-0
Q'ty: JS-2010 - 1,300 pcs/tape & reel
JS-20101 - 250 pcs/PVC box |
Applicable wires: AWG# 22~28
Material:Phos. Bronze
Thickness:0.2mm
Q'ty: 10,000 pcs/reel |
|
