Specification
Voltage rating: 250V AC DC
Current rating: 5A AC,DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range: -40°C - +105°C
(Including temperature rise in applying electrical current)
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max

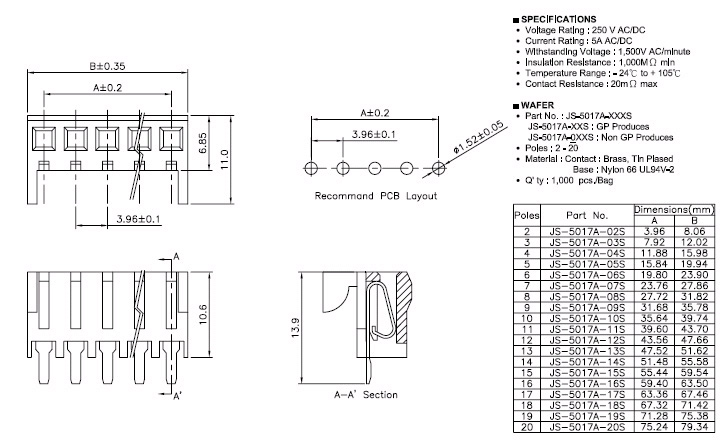

| Type |
| Wafer |
| Part No. |
JS-5017A-xxS(180° )
JS-5017A-xxR(90° )
JS-5018A-xxDR(360° ) |
| Description |
Poles: 02-20
Material: Contact : Brass,Tin plated
Base: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/bag |
|
