Specification
Voltage rating: 250V
Current rating: 7A AC,DC
Withstanding Voltage: 1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-5001 |

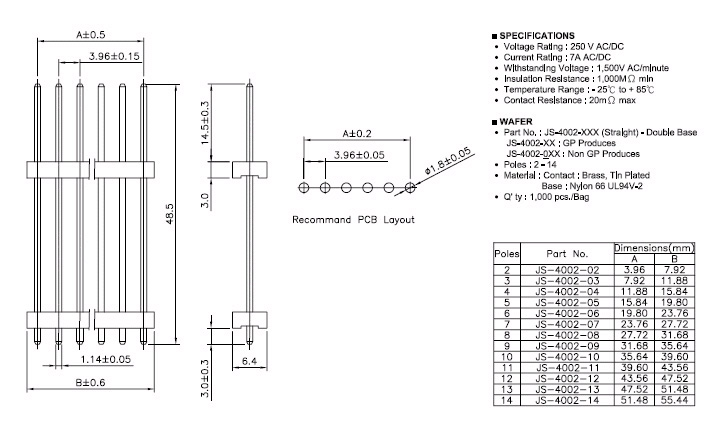

JS-4002 (Straight) - Double base
JS-4003 (Straight), JS-4003R (Right angle) |
JS-5001-T
JS-5001-TA (3 Contacts) |
| Description |
Description |
Description |
Poles:02-14
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Poles: 02-14
Material: Post : Brass Tin / plated
Base: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/bag |
Applicable wires: AWG# 18~24
Material: Brass
Finish:Tin plated
Thickness:0.25 mm
Q'ty: JS-5001-T 6,000 pcs/Reel
JS-5001-TA 7,000 pcs/Reel |
|
