KD-4001-XX  Disconnectable crimp style connectors


More Specification >>

Specification
Voltage rating: 250V AC DC
Current rating: 7A AC,DC
Withstanding Voltage:  1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max



Type Type Type
Housing Wafer Terminal
Part No. Part No. Part No.
JS-5001 JS-4001(180° )
JS-4001R(90° )		 JS-5001-T
JS-5001-TA (3 Contacts)
Description Description Description
Poles:02-14
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag		 Poles: 02-14
Material: Contact : Brass,Tin plated
Base: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/bag		 Applicable wires: AWG# 18~24

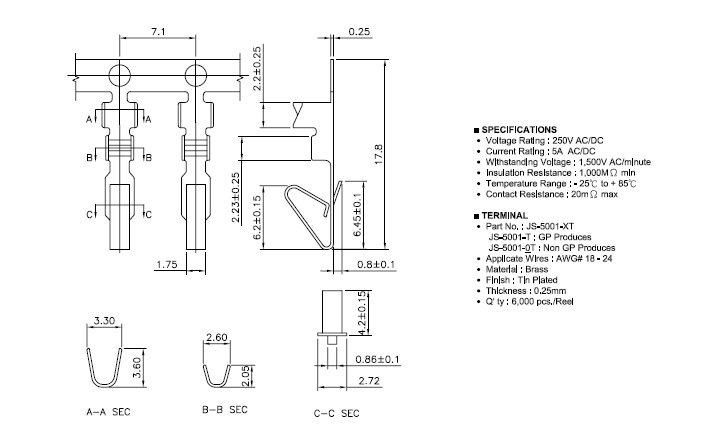

Material: Brass
Finish:Tin plated
Thickness:0.25 mm

Q'ty: JS-5001-T 6,000 pcs/Reel
JS-5001-TA 7,000 pcs/Reel
