Path : Our Products > Connectors > Crimp, Housing, Wafer > Wire to Board Connectors > 3.96mm

KD-1138,KD-1139 series  Disconnectable crimp style connectors


More Specification >>

Specification
Voltage rating: 250V
Current rating: 5A AC,DC
Withstanding Voltage:  1500V AC/ minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max



Type Type Type

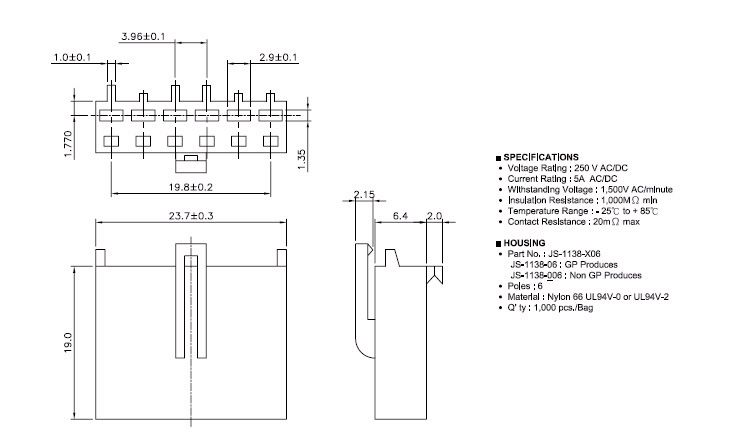

Housing Wafer Terminal
Part No. Part No. Part No.
JS-1138-06 JS-1139,JS-1139-xxW0/P(Without Post) JS-5001-T, JS-5001-TA(3 Contacts)
Description Description Description
Poles:6
Material: Nylon 66 UL 94V-0or UL94V-0
Q'ty: 1,000 pcs/Bag		 Poles: 6,12
Material: Contact : Brass, Tin plated
Base : Nylon 66 UL94V-2
Q'ty: 1,000 pcs/bag		 Applicable wires: AWG# 18~24
Material: Brass
Finish:Tin plated Gold plated
Thickness:0.25 mm

Q'ty: JS-5001-T 6,000 pcs/Reel
JS-5001-TA 7,000 pcs/Reel
