Specification
Voltage rating: 250V
Current rating: 7A AC,DC
Withstanding Voltage: 1500V / minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-1121 |
JS-1120(180° ) , JS-1120R(90° ) |
JS-1121-T |
| Description |
Description |
Description |
Poles:2-15
Material: Nylon 66 UL 94V-0
Q'ty: 1,000 pcs/Bag |
Poles: 2-15
Material: Contact : Brass, Tin plated
Base : Nylon 66 UL94V-0
Q'ty: 1,000 pcs/bag |

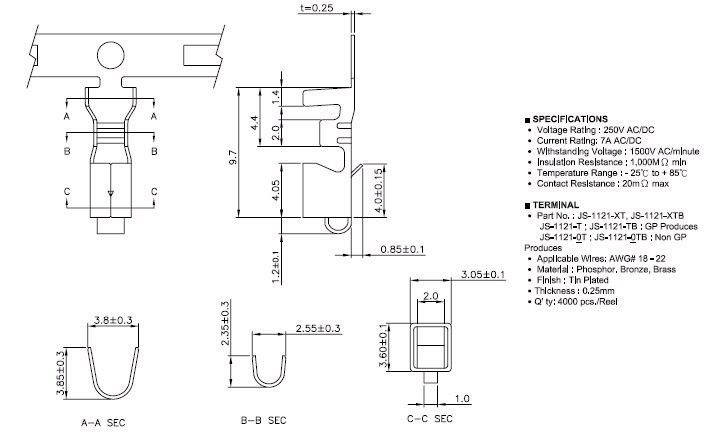

Applicable wires: AWG# 18~22
Material: Phos. Bronze, Brass
Finish:Tin plated
Thickness:0.2 mm
Q'ty: 4,000 pcs/Reel |
|
