Specification
Voltage rating: 1400V AC,DC
Current rating: 1A
Withstanding Voltage: 3800V / minute
Insulation resistance: 1000MΩ Min
Temperature range: 45°C - +105°C
(Including temperature rise in applying electronical current)
Contact resistance: Initial Vaule / 10m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-2011 |
JS-2012(SMT Type)

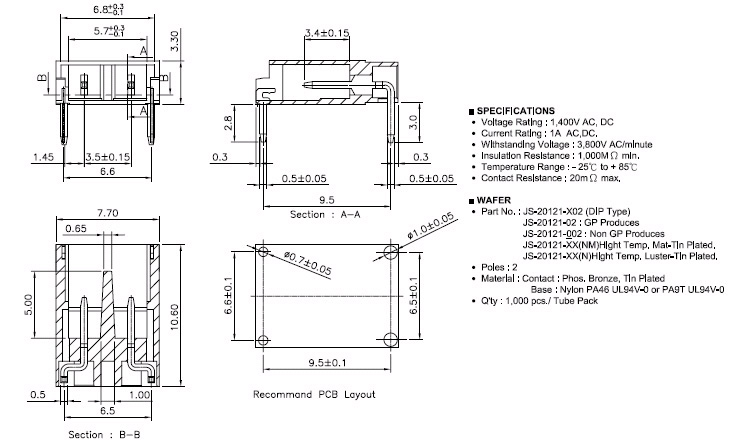

JS-20121(DIP Type) |
JS-2011-T |
| Description |
Description |
Description |
Poles:2
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Poles: 2
Material: Contact: Phos. Bronze , Tin plated
Base : Nylon PA46 UL94V-0 or PA9T UL94V-0
Q'ty: JS-2012 1,200 pcs/Tape & Reel
JS-20121 1,000 pcs/Tube Pack |
Applicable wires: AWG# 24-28
Material: Phos. Bronze
Finish:Tin plated
Thickness:0.2 mm
Q'ty: 10,000 pcs/Reel |
|
