Specification
Voltage rating: 250V AC
Current rating: 3A AC/DC
Withstanding Voltage: 1000V / minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C(Including temperature rise in applying electronical current)
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-8254 |

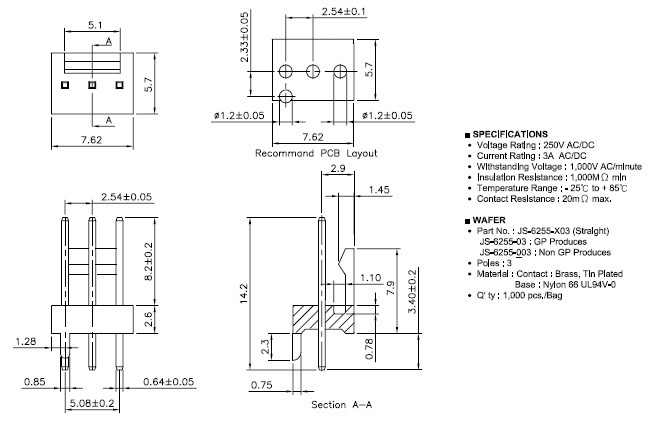

JS-6254,JS-6255 (Straight)
JS-7254-xx(L) (Left Angle) |
JS-8001-T,JS-8001-T(G),JS-8001-PBT |
| Description |
Description |
Description |
Poles:2-12
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Poles: 2-12
Material: Contact : Brass,Tin plated
Base: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Applicable wires: AWG# 22~ 30
Material: Brass, phos bronze
Finish:Tin or Gold Plated
Thickness:0.2 mm
Q'ty: 10,000 pcs/Reel |
|
