Specification
Voltage rating: 250V AC
Current rating: 3A AC/DC
Withstanding Voltage: 1000V / minute
Insulation resistance: 1000MΩ Min
Temperature range: -25°C ~ +85°C
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-8001 |
JS-6001(180° ),JS-7001 (90° ) |
JS-8001-T, JS-8001-PBT42-T(G) |
| Description |
Description |
Description |
Poles:2-15
Material: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
Poles: 2-15
Material: Contact :Brass, Tin Plated
Base : Nylon 66 UL94V-2
Q'ty: 1,000 pcs/Bag |

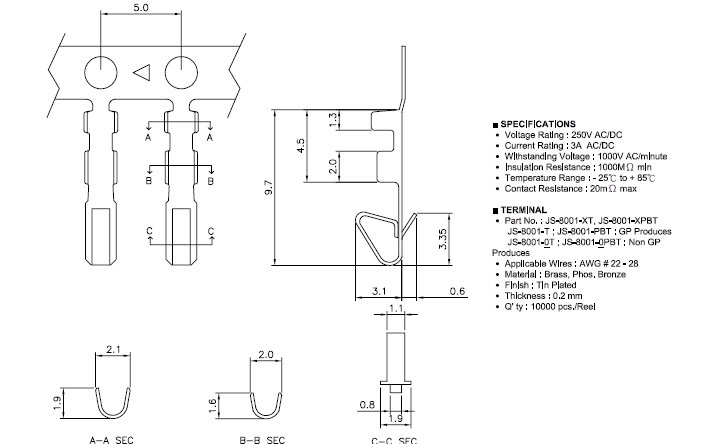

Applicable wires: AWG# 22~ 30
Material: Brass, phos bronze
Finish:Tin plated ,
Thickness:0.2 mm
Q'ty: 10,000 pcs/Reel |
|
