Specification
Voltage rating: 250V AC
Current rating: 3A AC/DC
Withstanding Voltage: 1000V / minute
Insulation resistance: 1000MΩ Min
Temperature range: -45°C - +105°C (Including temperature rise in applying electrical current)
Contact resistance: Initial Vaule / 10m max.
After environmental
testing/20m max
| Type |
| Wafer |
| Part No. |

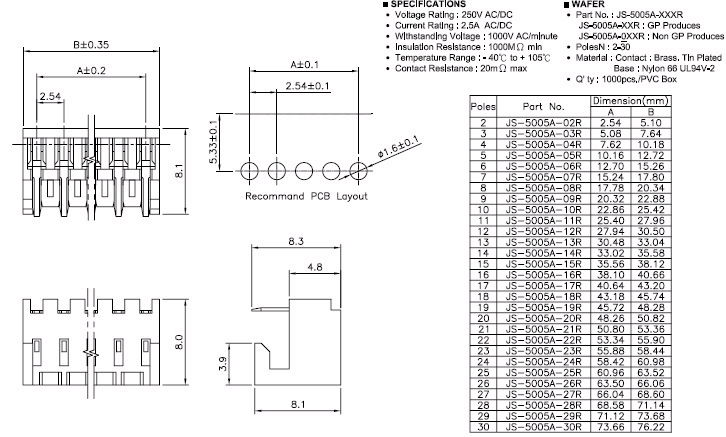

JS-5005A-xxS(180° )
JS-5005A-xxR(90° )
JS-5006A-xxDR(360° ) |
| Description |
Poles: 2-30
Material: Contact : Brass,Tin plated
Base: Nylon 66 UL 94V-2
Q'ty: 1,000 pcs/Bag |
|
