Specification
Voltage rating: 250V AC
Current rating: 3A AC/DC
Withstanding Voltage: 1000V / minute
Insulation resistance: 1000MΩ Min
Temperature range: -25℃ to +85℃
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-1142 |
JS-1143(180° ) , JS-1143R(90° ) |
JS-1142-T , JS-1142-T(G) |
| Description |
Description |
Description |
Poles: 02 - 12
Material: PBT UL94V-0
Q'ty: 1,000 pcs/Bag |
Poles: 2 - 18
Material: Contact : Brass, Tin plated
PBT UL 94V-0
Base : PBT UL94V-0
Q'ty: 1,000 pcs/Bag |

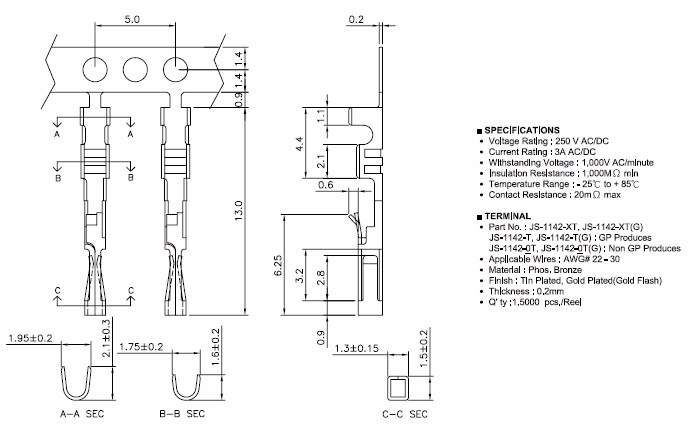

Applicable wires: AWG# 22~ 30
Material: Phos. bronze
Finish:Tin plated , Gold plated
Thickness:0.2 mm
Q'ty: 15,000 pcs/Reel |
|
