Specification
Voltage rating: 250V AC
Current rating: 3A AC/DC
Withstanding Voltage: 1000V / minute
Insulation resistance: 1000MΩ Min
Temperature range: -25℃ to +85℃
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
JS-1108 (Single Row)
JS-1105,JS-1105B(Double Row) |

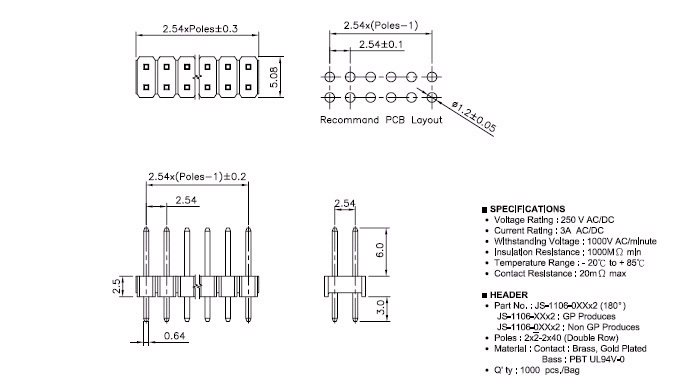

JS-1106(180° ) , JS-1107(90° ) (Double row)
JS-1109(180° ) , JS-1110(90° ) (Single row) |
JS-1105-T,JS-1105-T2, JS-1108-T |
| Description |
Description |
Description |
Poles: 1 - 40 (Single Row)
2x2–40x2 (Double Row)
Material: Nylon 66 UL 94V-0
Q'ty: 1,000 pcs/Bag |
Poles: 1 - 40 (Single row)
2x2 – 40x2 (Double Row)
Material: Contact : Brass, Brass, Gold Plated
Base : PBT UL94V-0
Base : Nylon 66 UL94V-0Q'ty: 1,000 pcs/Bag |
Applicable wires: AWG# 22~ 28
Material: eBrass,
Finish:Gold plated / gold flash , Tin plated
Thickness:0.2 mm
Q'ty: 10,000 pcs/Reel |
|
