Specification
Voltage rating: 250V AC
Current rating: 3A AC/DC
Withstanding Voltage: 1000V / minute
Insulation resistance: 1000MΩ Min
Temperature range: -25℃ to +85℃ (Including temperature rise in applying electronical current)
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |
| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-8002 |
JS-8001-T , JS-8001-PBT |
JS-8001-T , JS-8001-PBT |
| Description |
Description |
Description |
Poles: 02-15
Material: Nylon 66 UL 94V-0
Q'ty: 1,000 pcs/Bag |
Poles: 02-15
Material: Contact : Brass, Tin plated
Base : Nylon 66 UL94V-0Q'ty: 1,000 pcs/Bag |

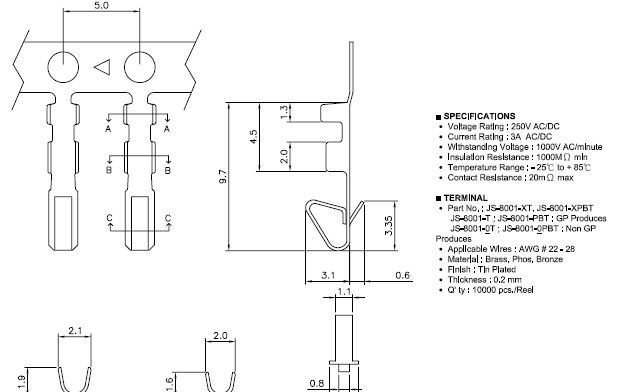

Applicable wires: AWG# 22~ 30
Material: Phos . bronze Brass,
Finish:Tin plated
Thickness:0.2 mm
Q'ty: 10,000 pcs/Reel |
|
