Specification
Voltage rating: 250V AC
Current rating: 3A AC/DC
Withstanding Voltage: 1500V / minute
Insulation resistance: 500MΩ Min
Temperature range: -25℃ to +85℃
Contact resistance: Initial Vaule / 20m max.
After environmental
testing/20m max
| Type |
Type |
Type |

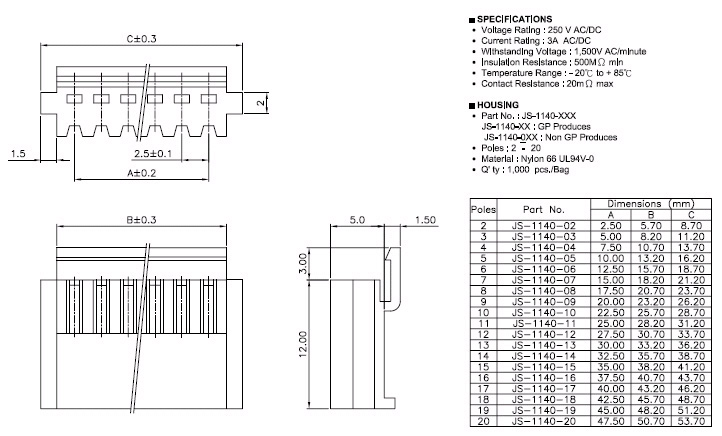

| Housing |
Wafer |
Terminal |
| Part No. |
Part No. |
Part No. |
| JS-1140 |
JS-1141(180°C ) , JS-1141R(90°C ) |
JS-6503-T |
| Description |
Description |
Description |
Poles: 02-20
Material: Nylon 66 UL 94V-0
Q'ty: 1,000 pcs/Bag |
Poles: 02-20
Material: Contact : Brass, Tin plated
Base : Nylon 66 UL94V-0Q'ty: 1,000 pcs/Bag |
Applicable wires: AWG# 22~ 28
Material: Brass
Finish:Tin plated
Thickness:0.2 mm
Q'ty: 7,000 pcs/Reel |
|
